C2000 Concealed Fastener Attachment Systems
CEI Materials C2000 Concealed Fastener Attachment Systems offer installation flexibility by using a concealed adjustable bracket for a smooth finish with precision joints.

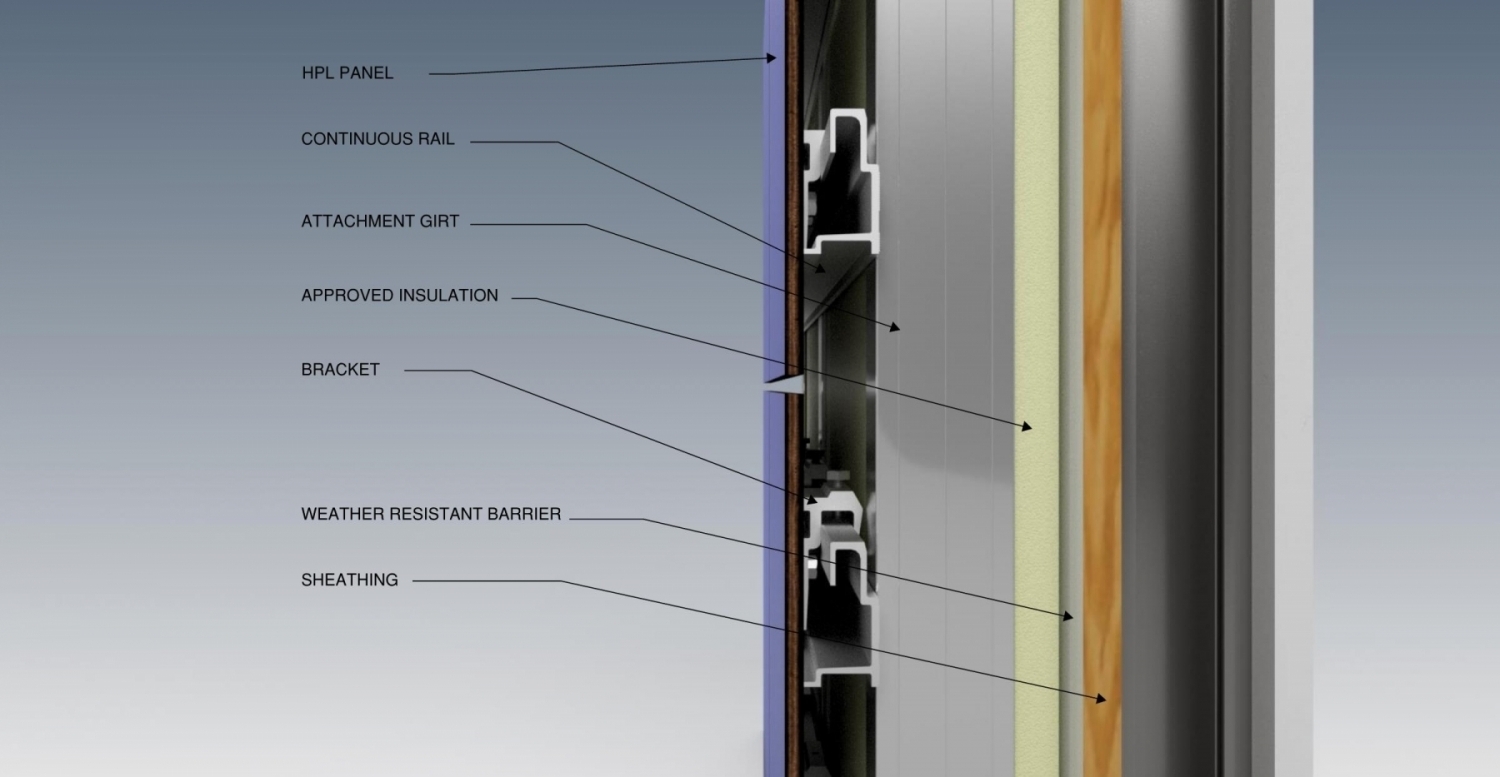

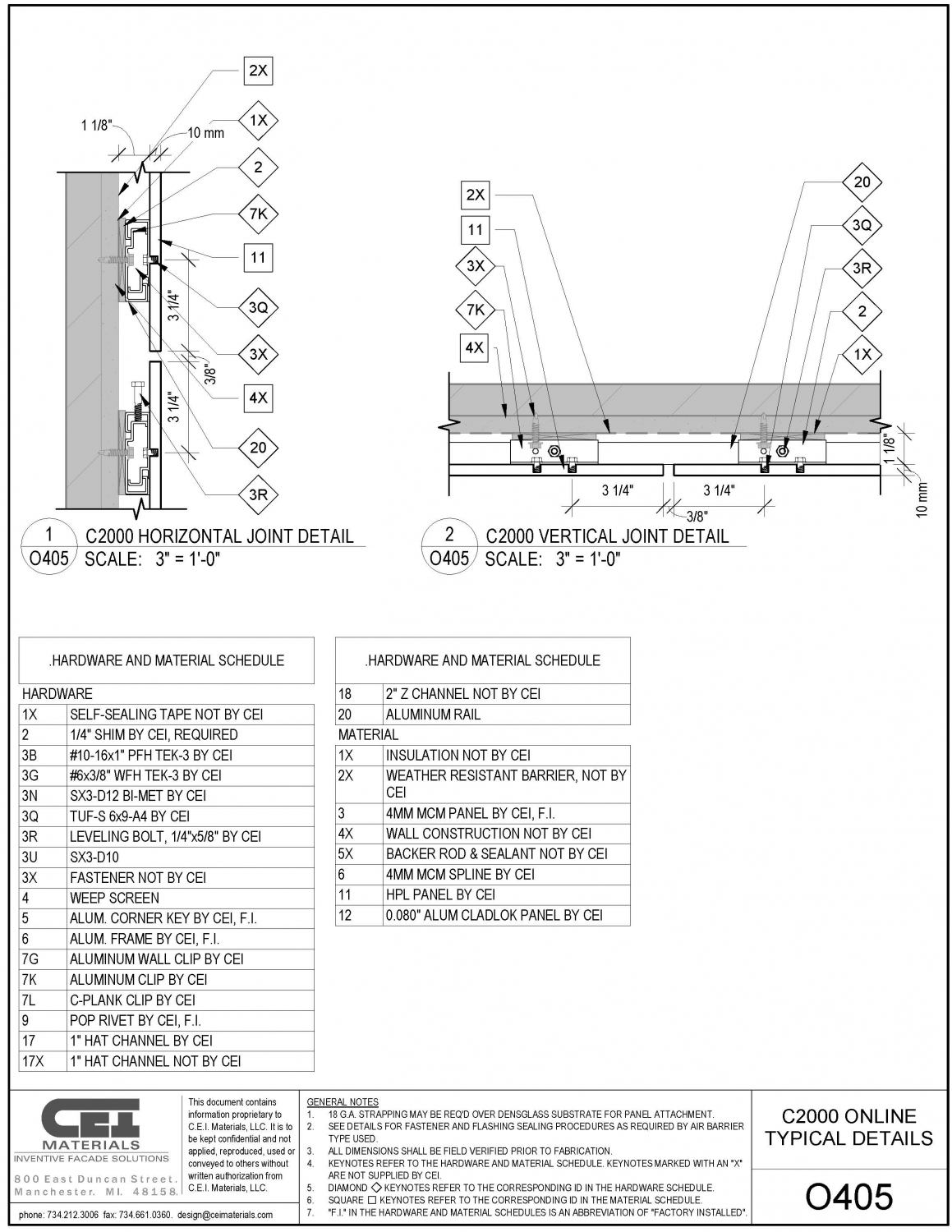

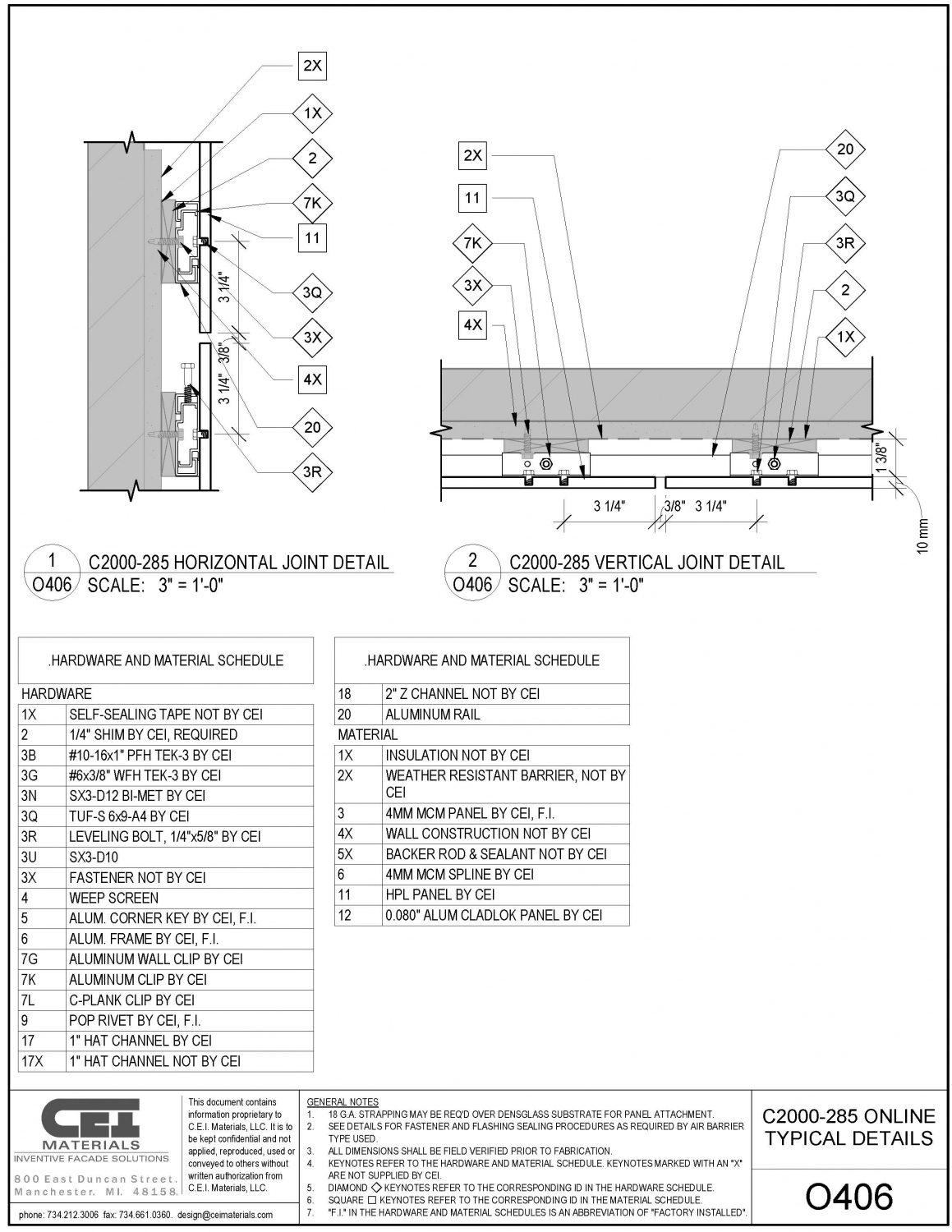

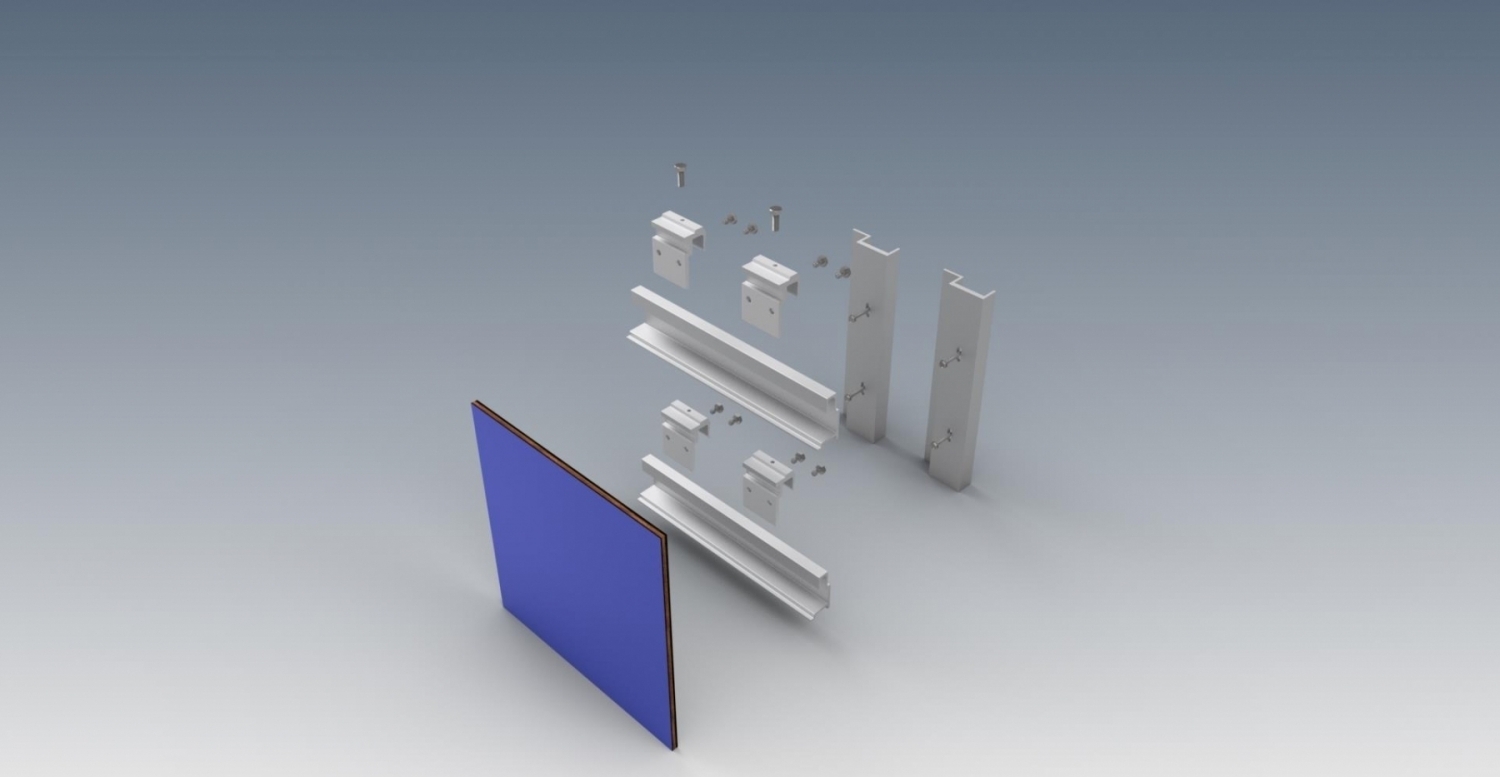

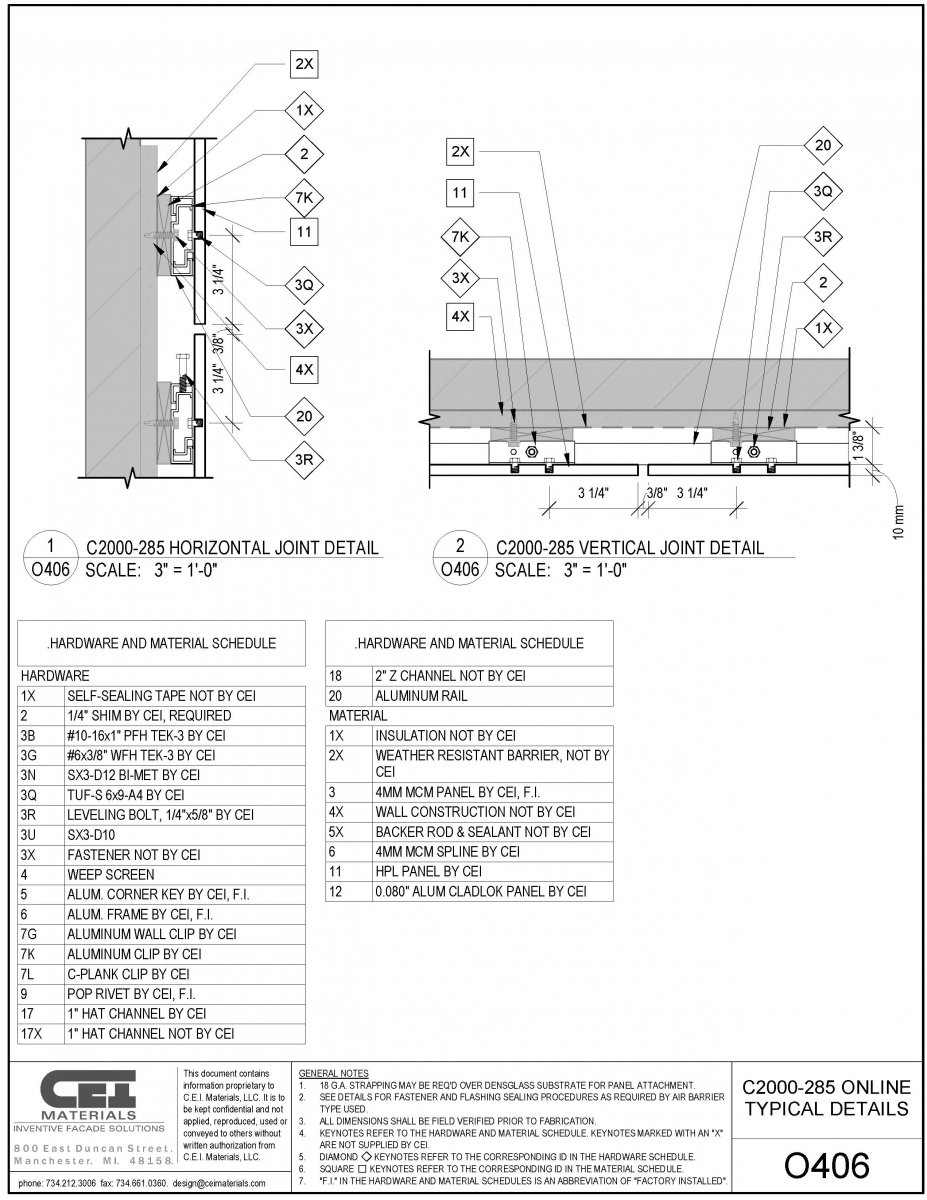

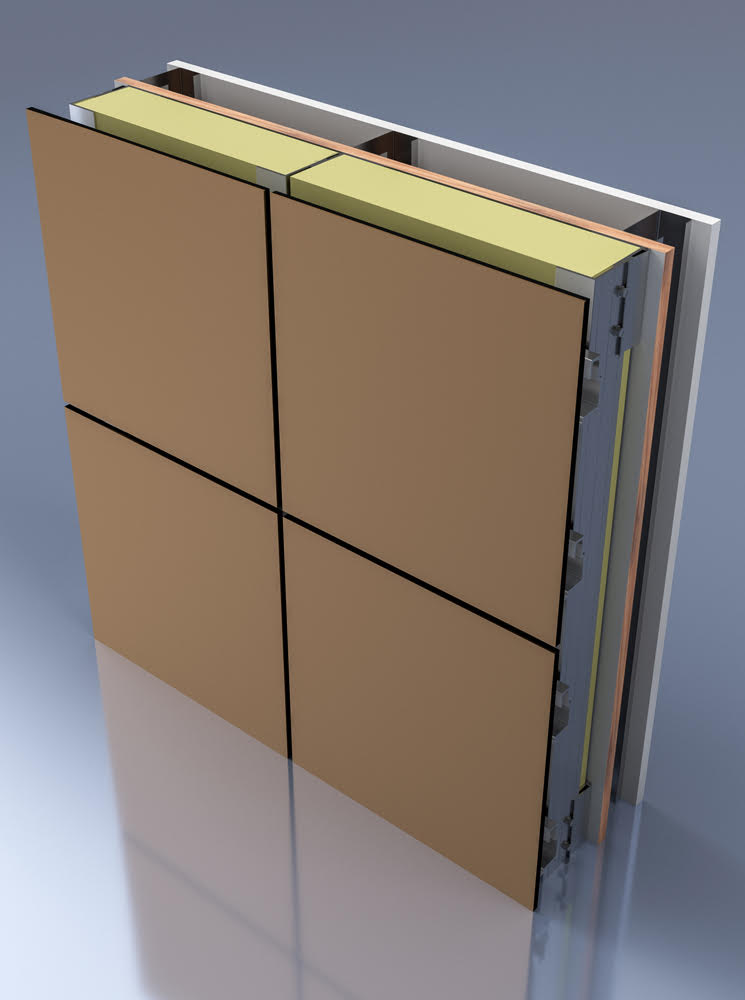

See Diagrams
System Characteristics
Drained Back Ventilated Rainscreen
1 3/8" System Depth
The back of each panel is pre-drilled to receive the hanger clip and anchor
Low Maintenance
Mill Finish or Black Anodized Rail
Systems Tested To:
ASTM E 283
ASTM E 330
ASTM E 331
AAMA 501.1
AAMA 509
Florida Product Approval
NFPA 285 Compliant
