CLADLOK™ Panels
CLADLOK™ modular panel systems

CLADLOK™ Modular Panel Systems in Michigan

CEI Materials' CLADLOK™ modular panel systems offer a variety of architecturally appealing faade options not seen with your typical rainscreen systems.

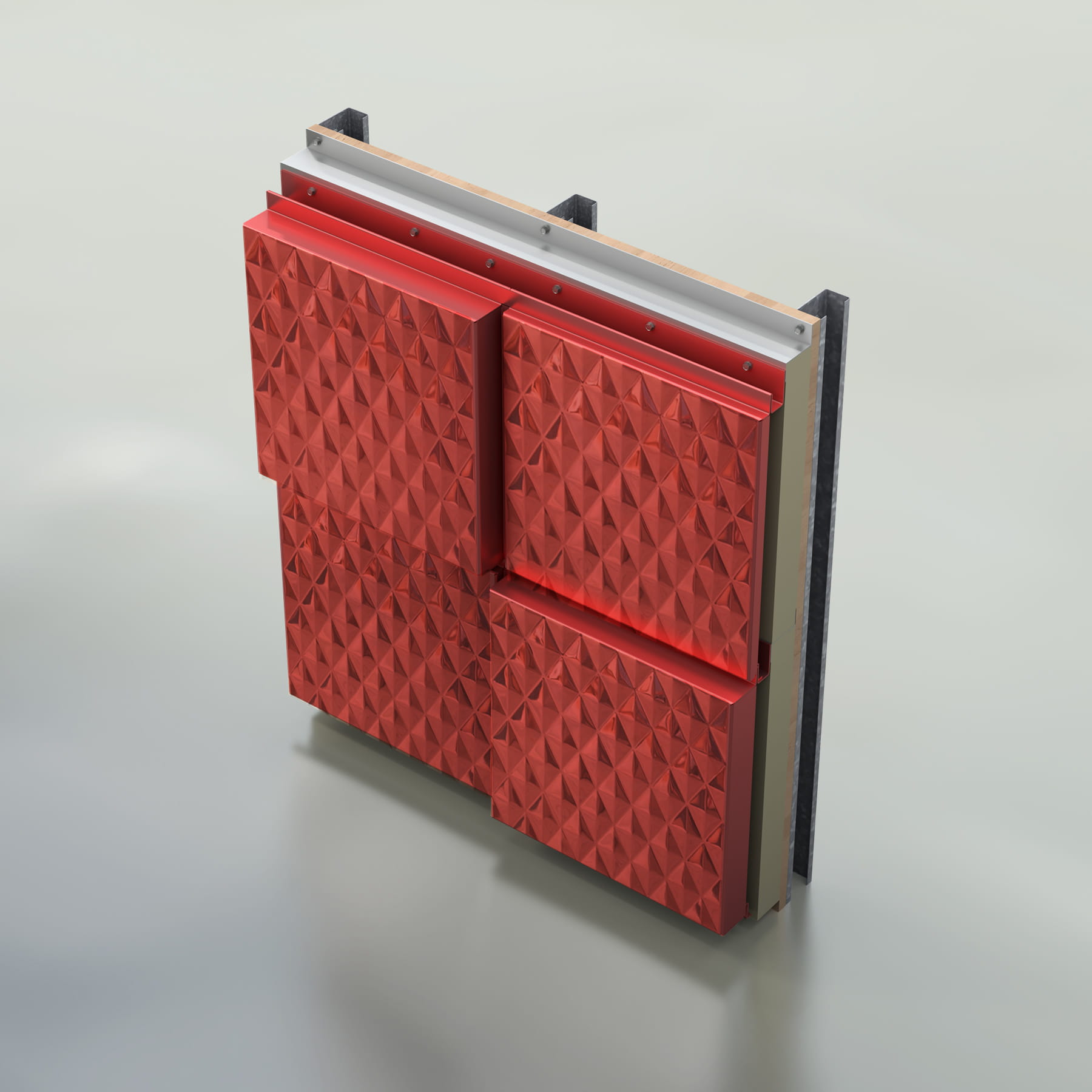

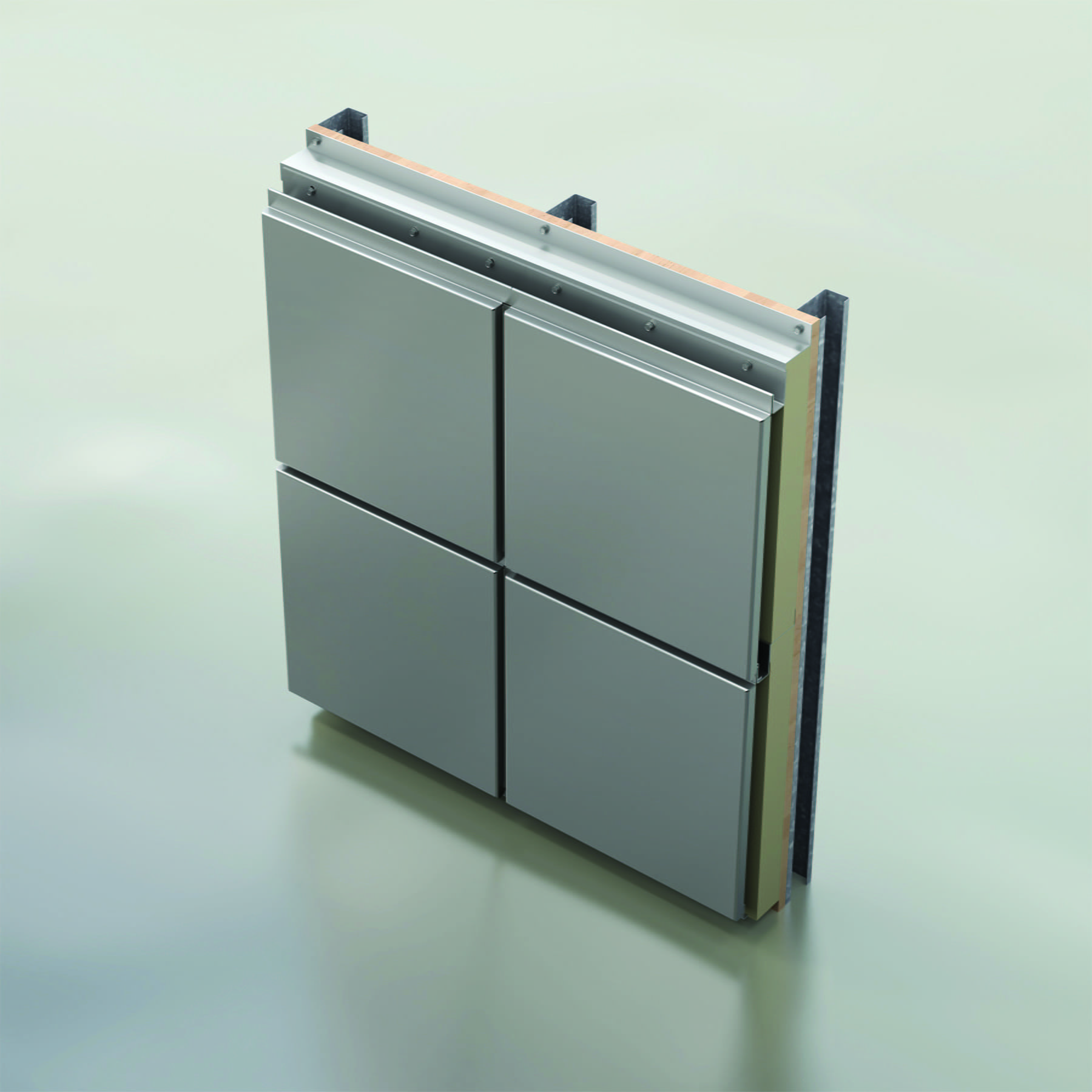

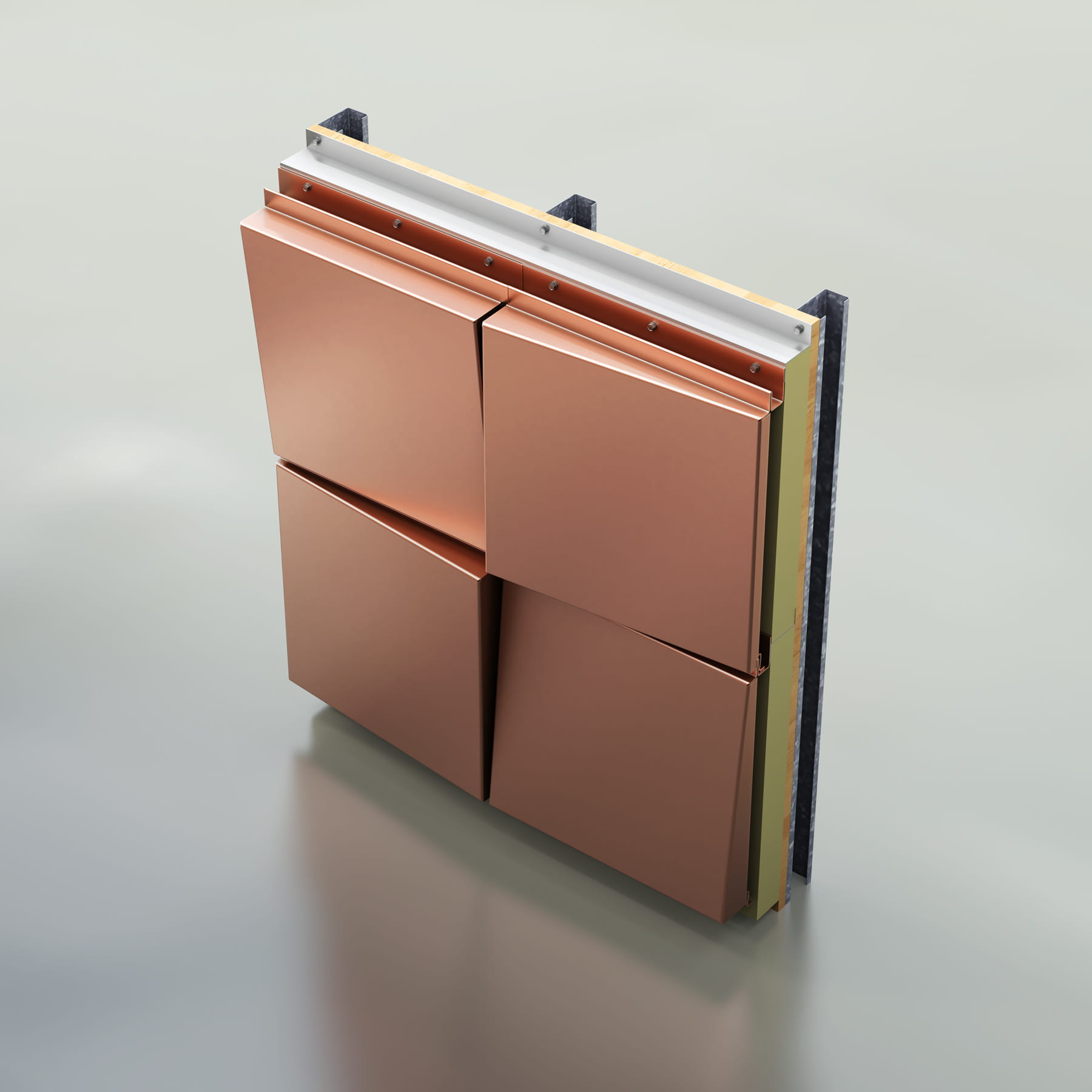

CEI Materials' modular CLADLOK™ Panel System is a pressure equalized rainscreen system that is easily installed to a wide variety of substrates and subgirt systems. This cassette style plate panel system has all interlocking edges formed from 1 piece of metal and does not require any additional components other than the fasteners that attach it to the wall or subgirt. This significantly reduces installation durations compared to other cladding systems on the market and offers a variety of architecturally appealing faade options without limitations.


Michigan Composite Panel Systems Manufacturer | CEI Materials - h1_logo_mark

Features & Benefits of CLADLOK™ Panels

  • Non-Combustible
  • 100% Recyclable
  • Pressure Equalized Rainscreen
  • 20 Year Finish Warranty on Painted Options*
  • Can be mixed with other cladding materials
  • Works well with continuous insulation
  • Economical
  • No Sealants for Quick Installation
  • Easily Field Cut
  • Little to No Maintenance
  • Short Lead Times

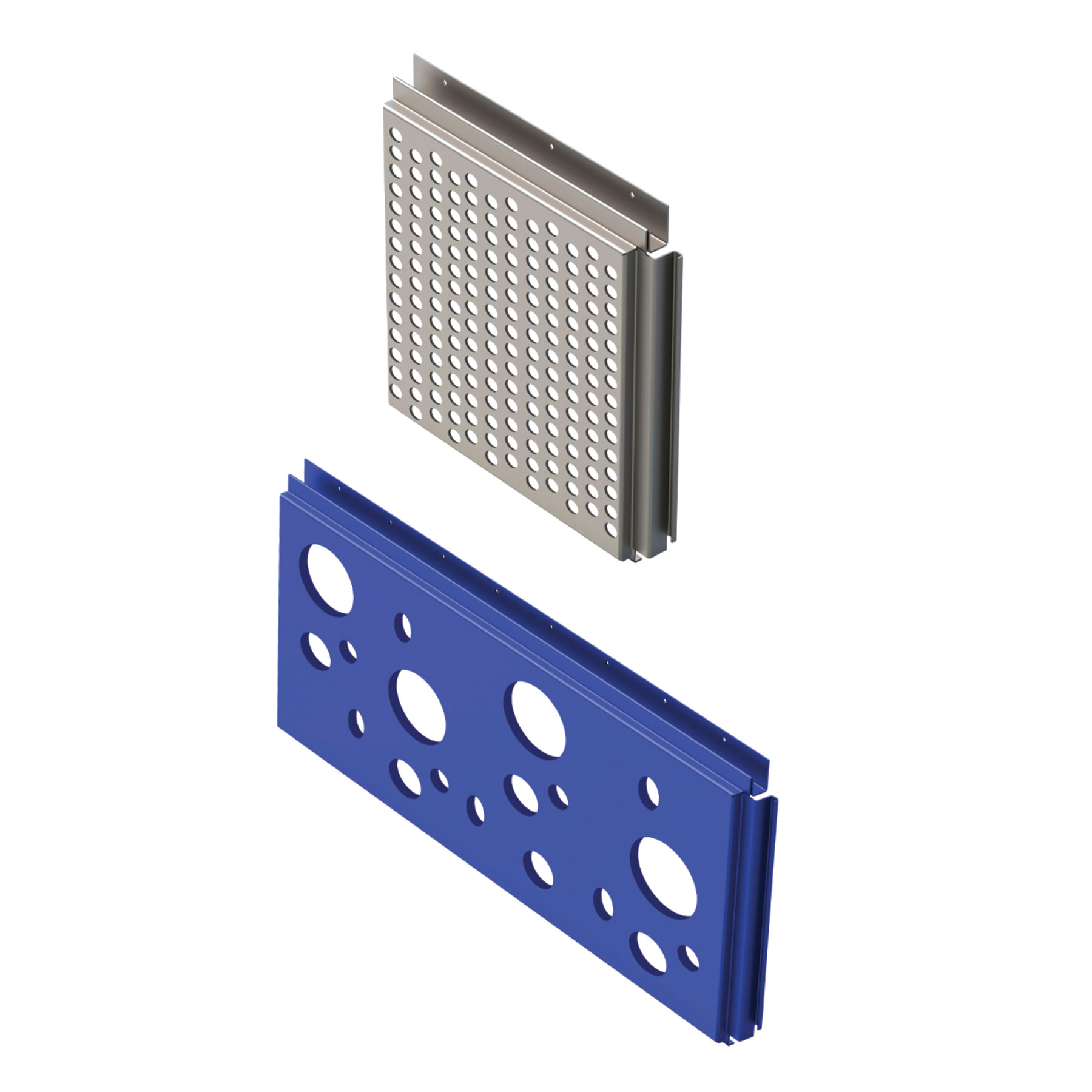

  • Available in Embossed or Perforated
  • Made in the USA

*Unlimited finish options with painted anodized and natural metals

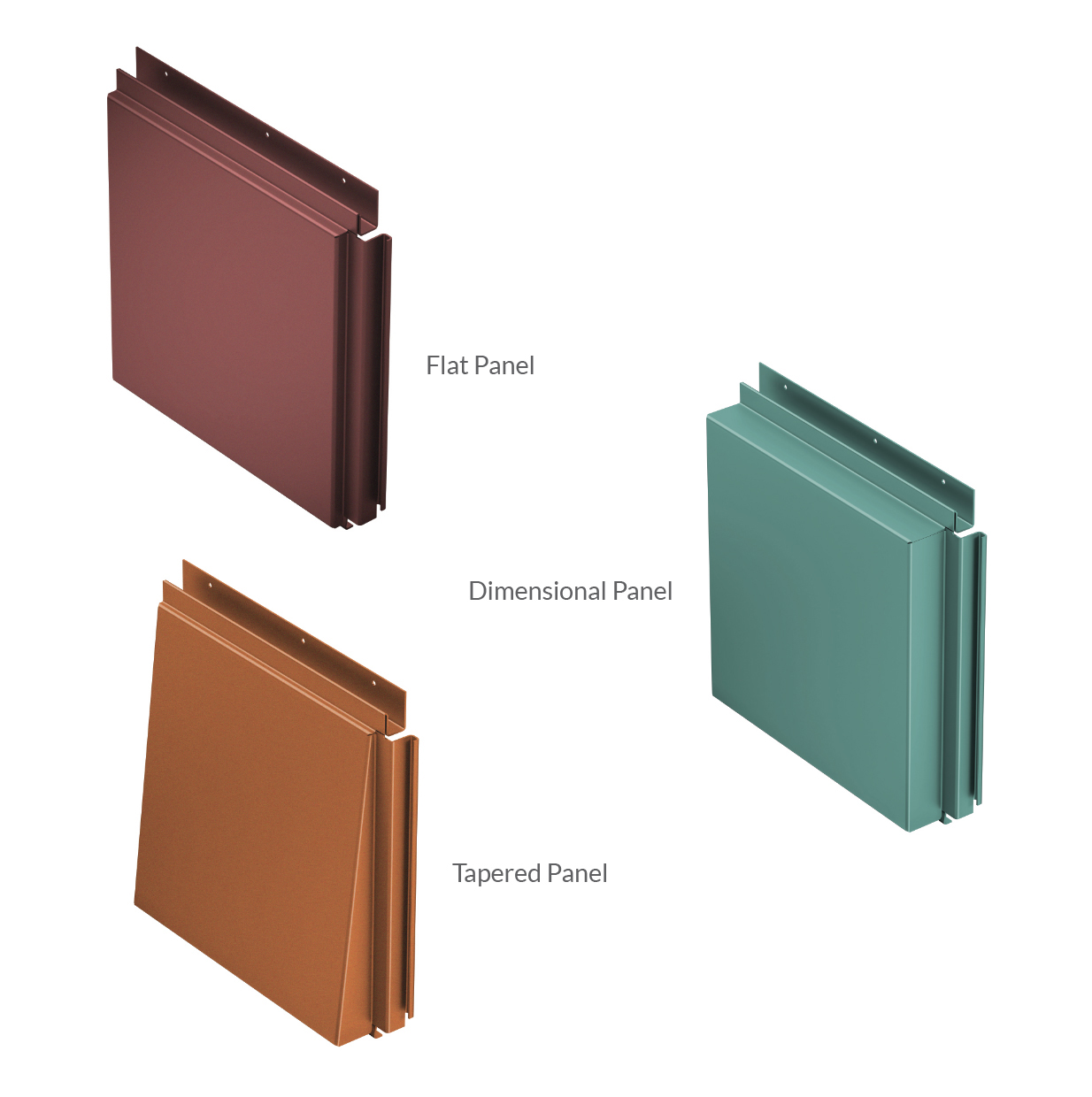

Cassette Types

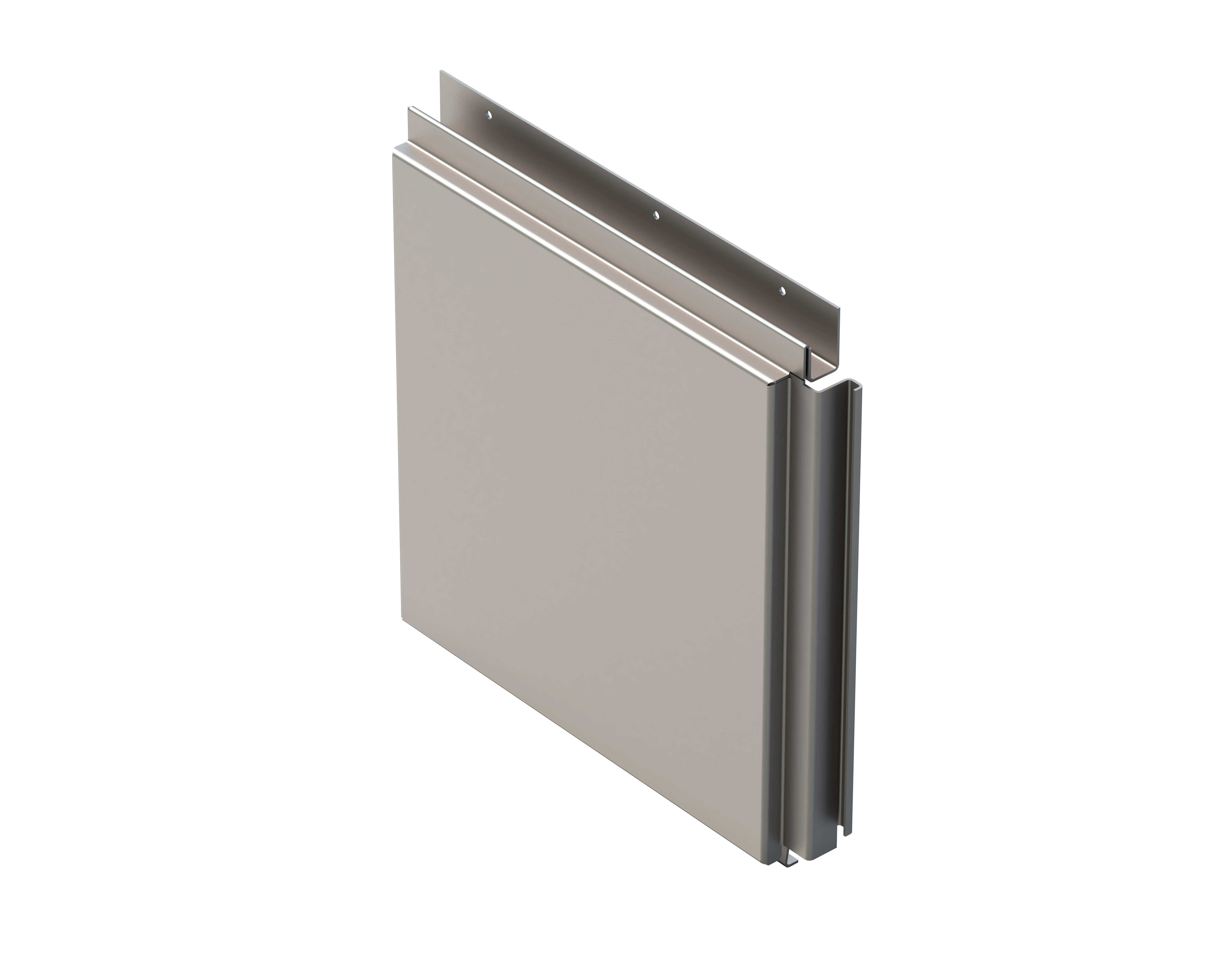

Flat

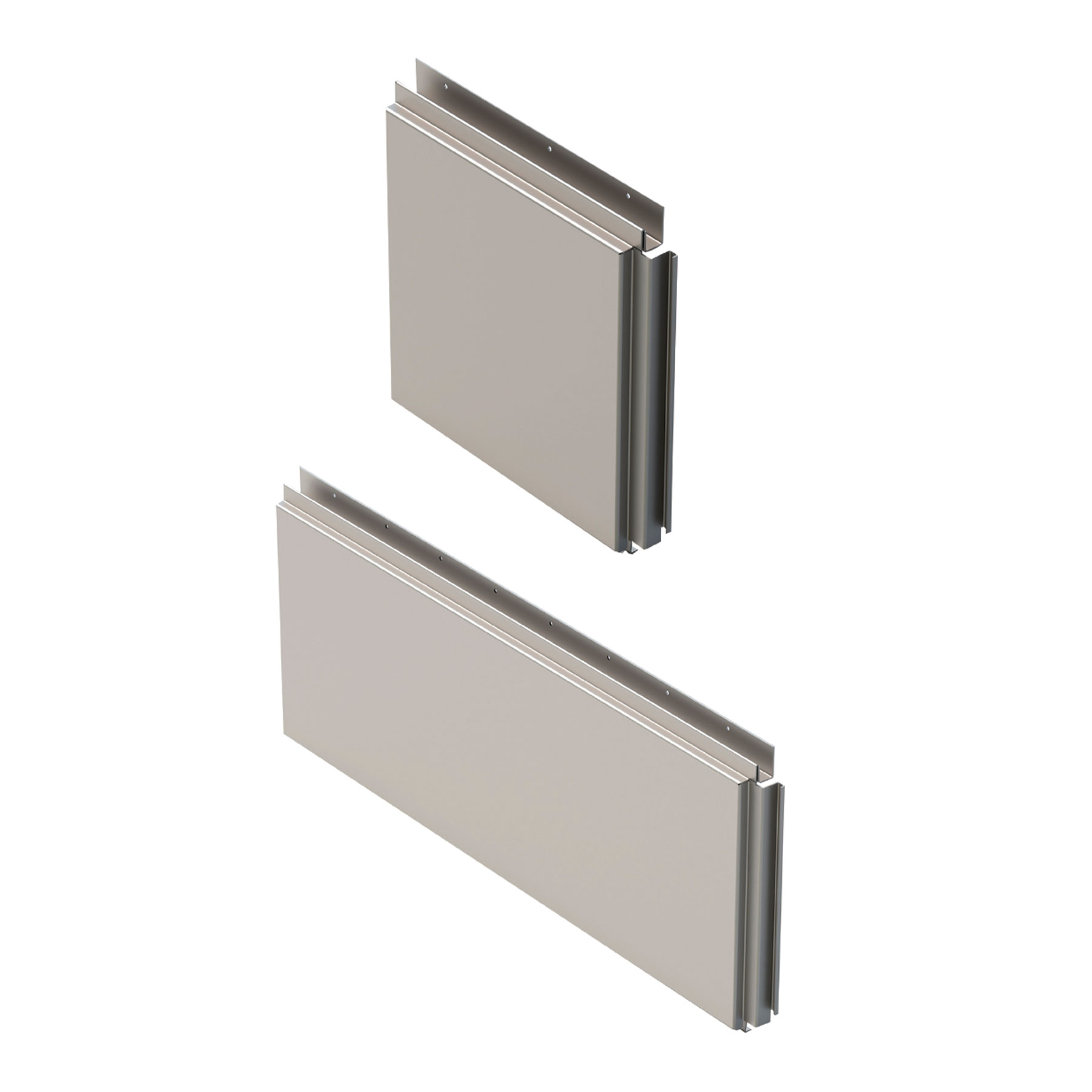

CLADLOK™ panel flat cassette

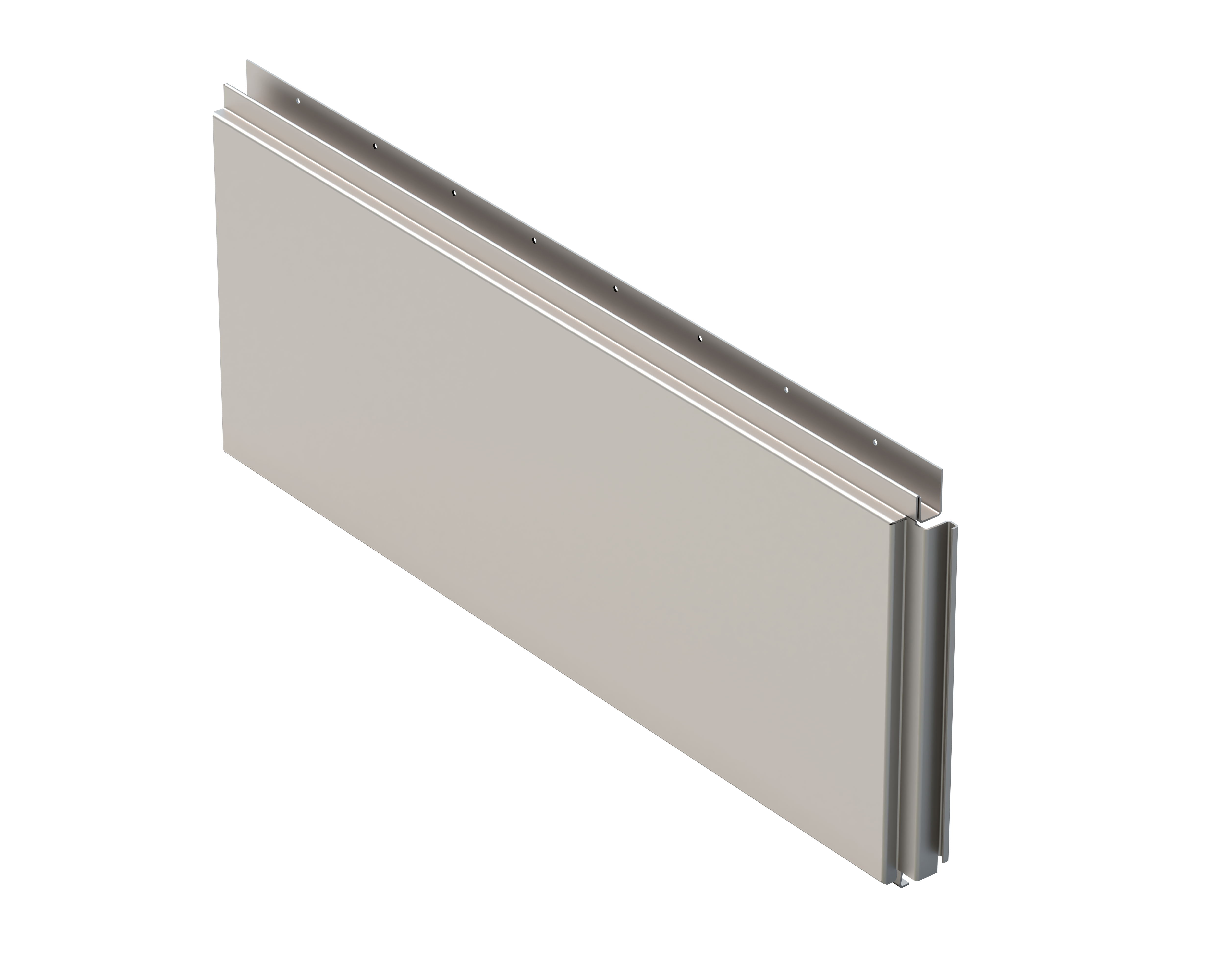

Flat Long

CLADLOK™ panel flat long cassette

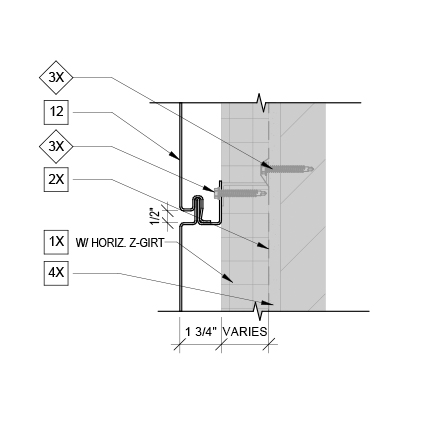

Flat Line Drawing

CLADLOK™ Panels - CEI Materials - flat Download DataSheet

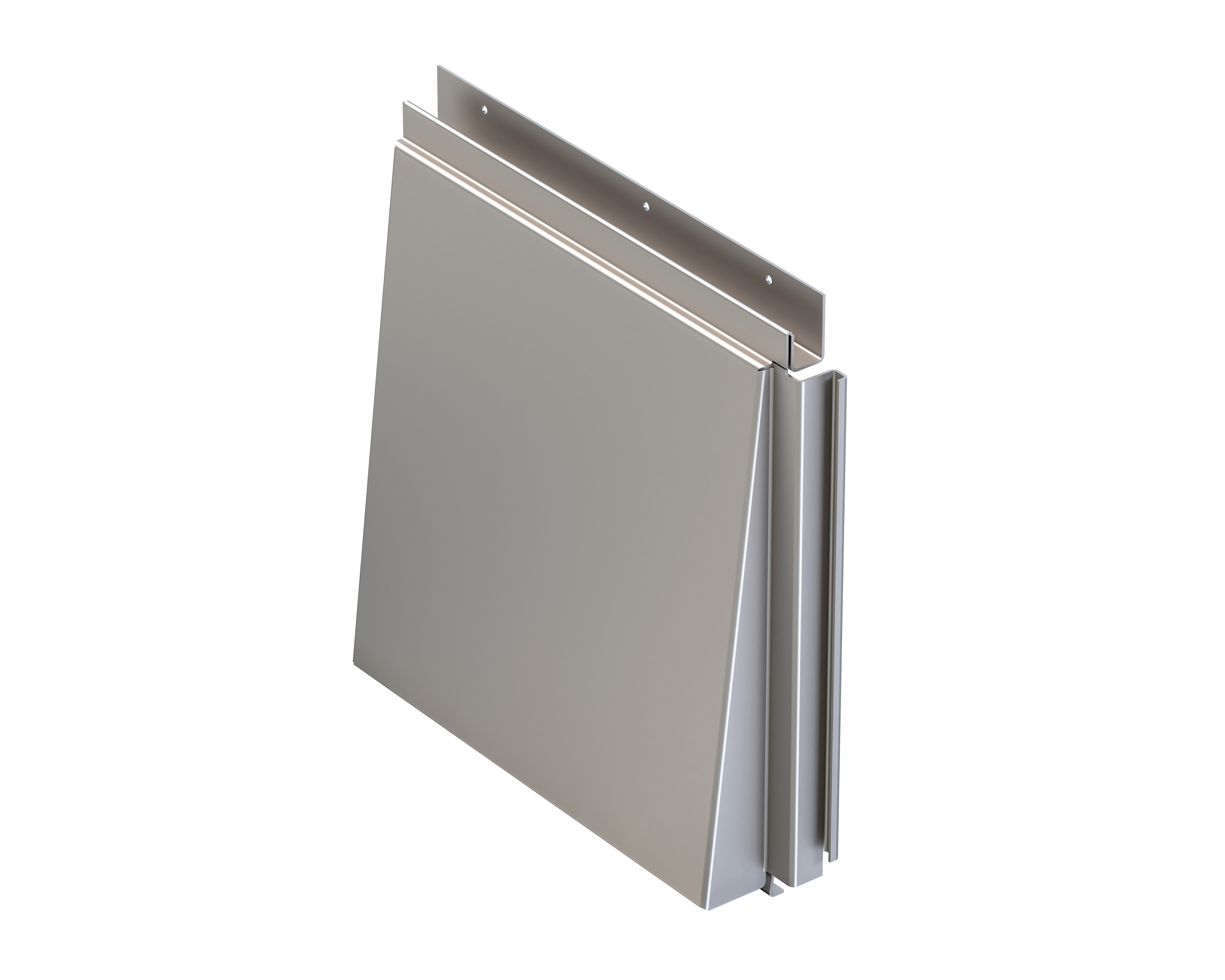

Tapered

CLADLOK™ panel tapered cassette

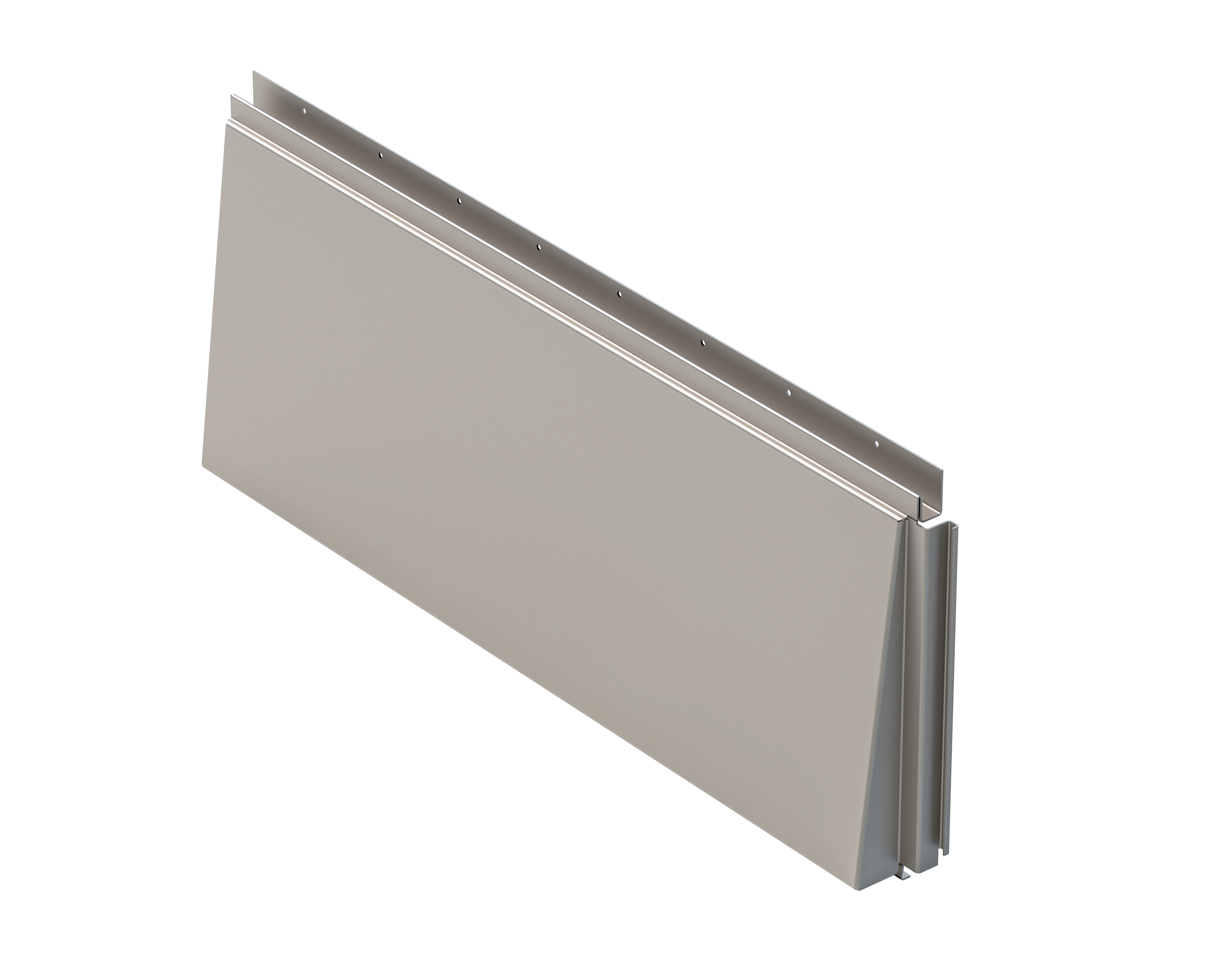

Tapered Long

CLADLOK™ panel tapered long cassette

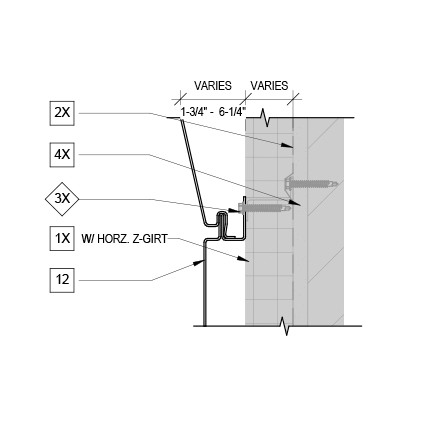

Tapered Line Drawing

CLADLOK™ Panels - CEI Materials - tapered Download DataSheet

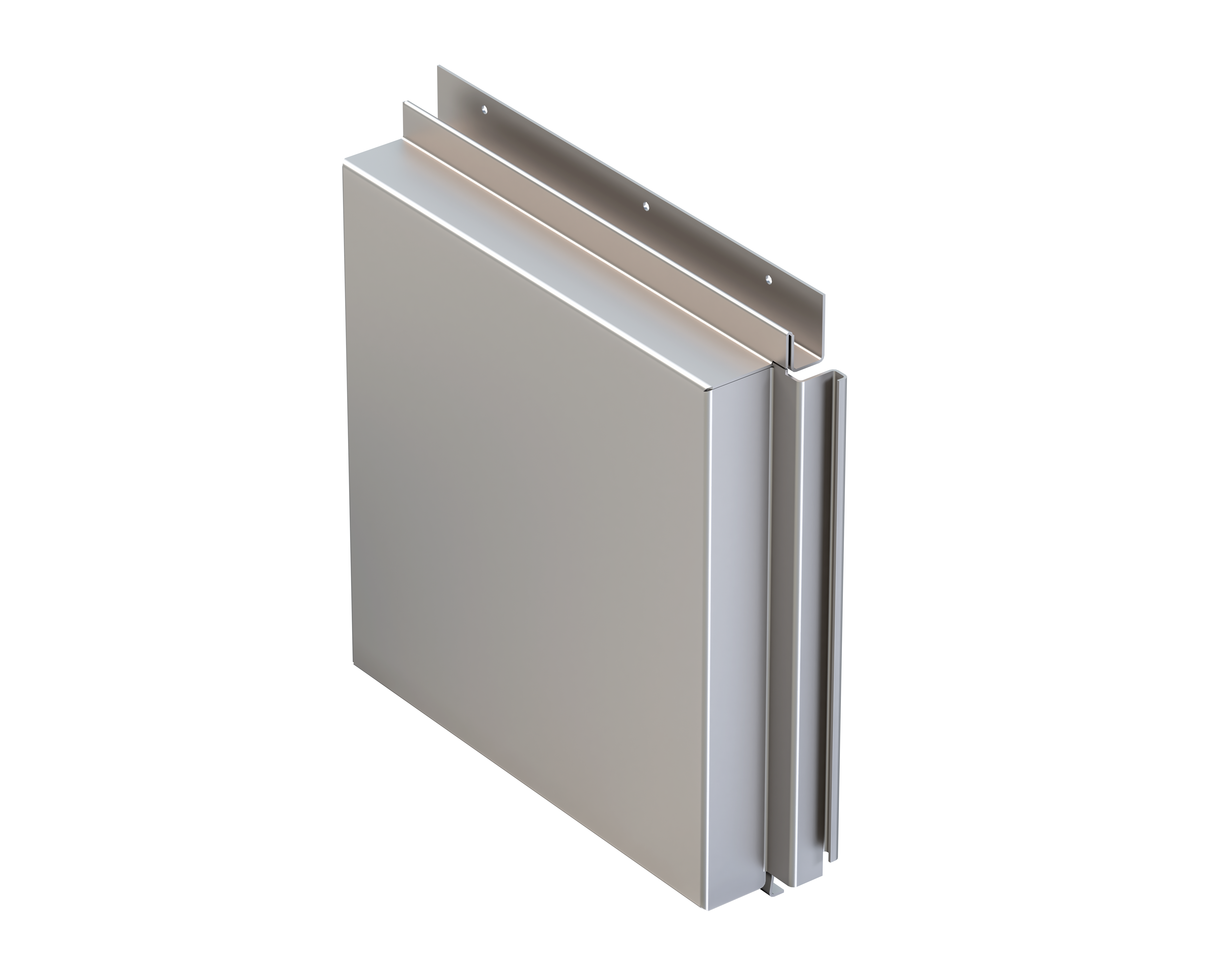

Dimensional

CLADLOK™ panel dimensional cassette

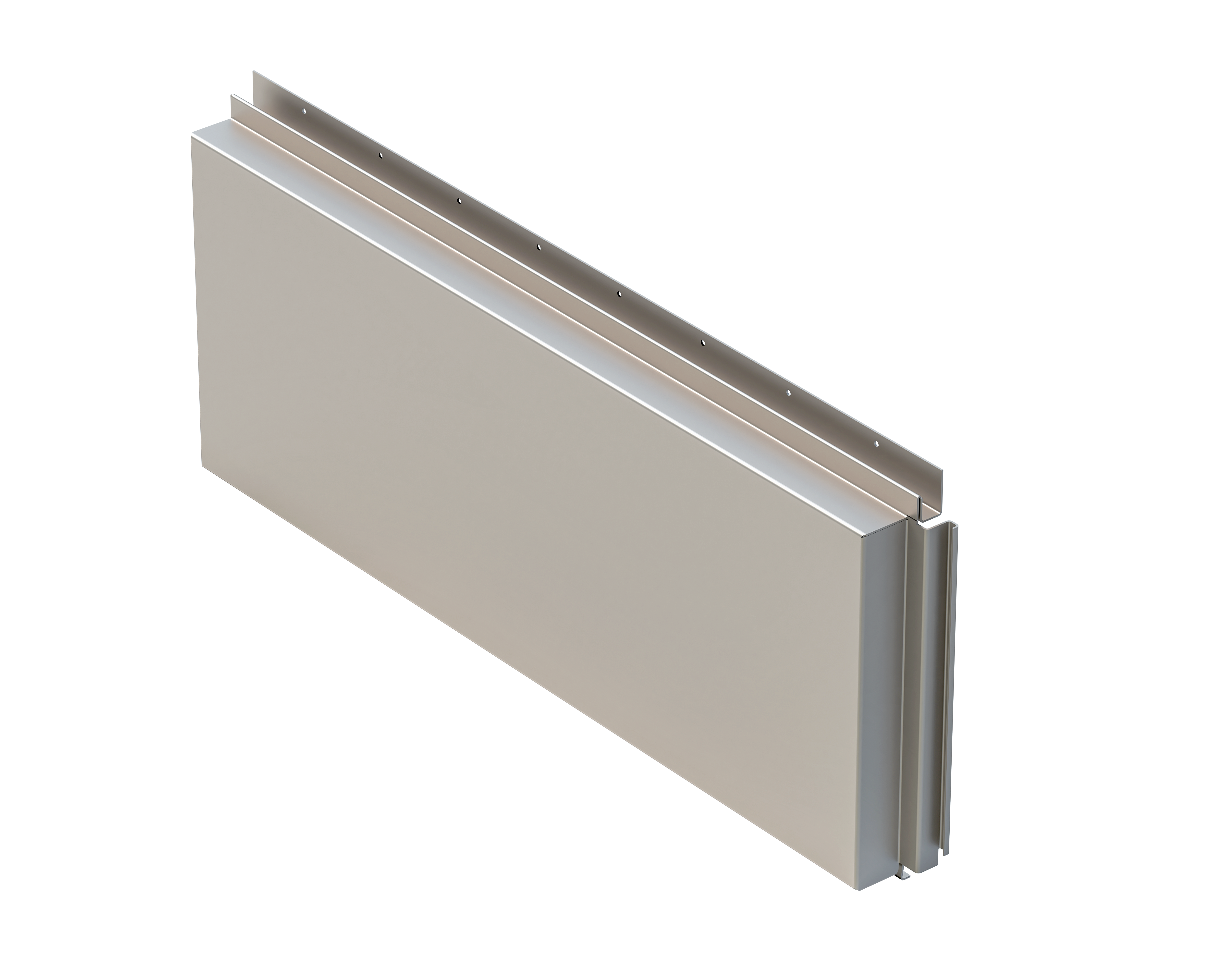

Dimensional Long

CLADLOK™ panel dimensional long cassette

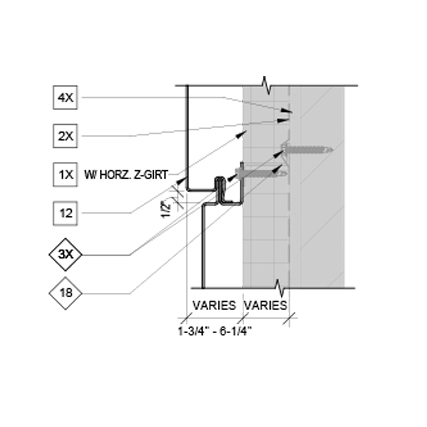

Dimensional Line Drawing

CLADLOK™ Panels - CEI Materials - dimensional Download DataSheet

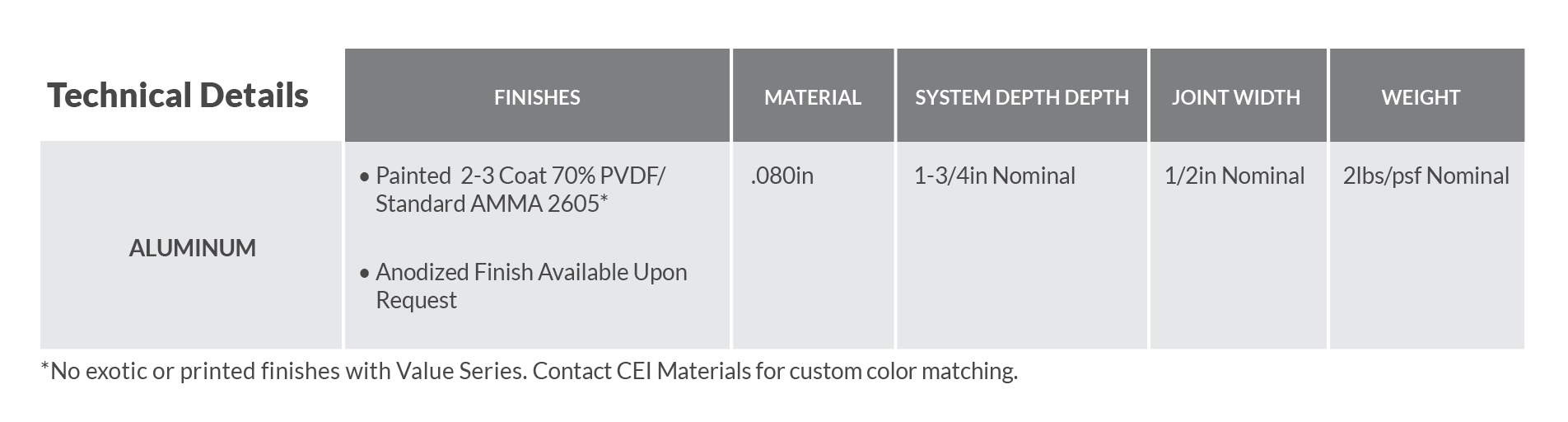

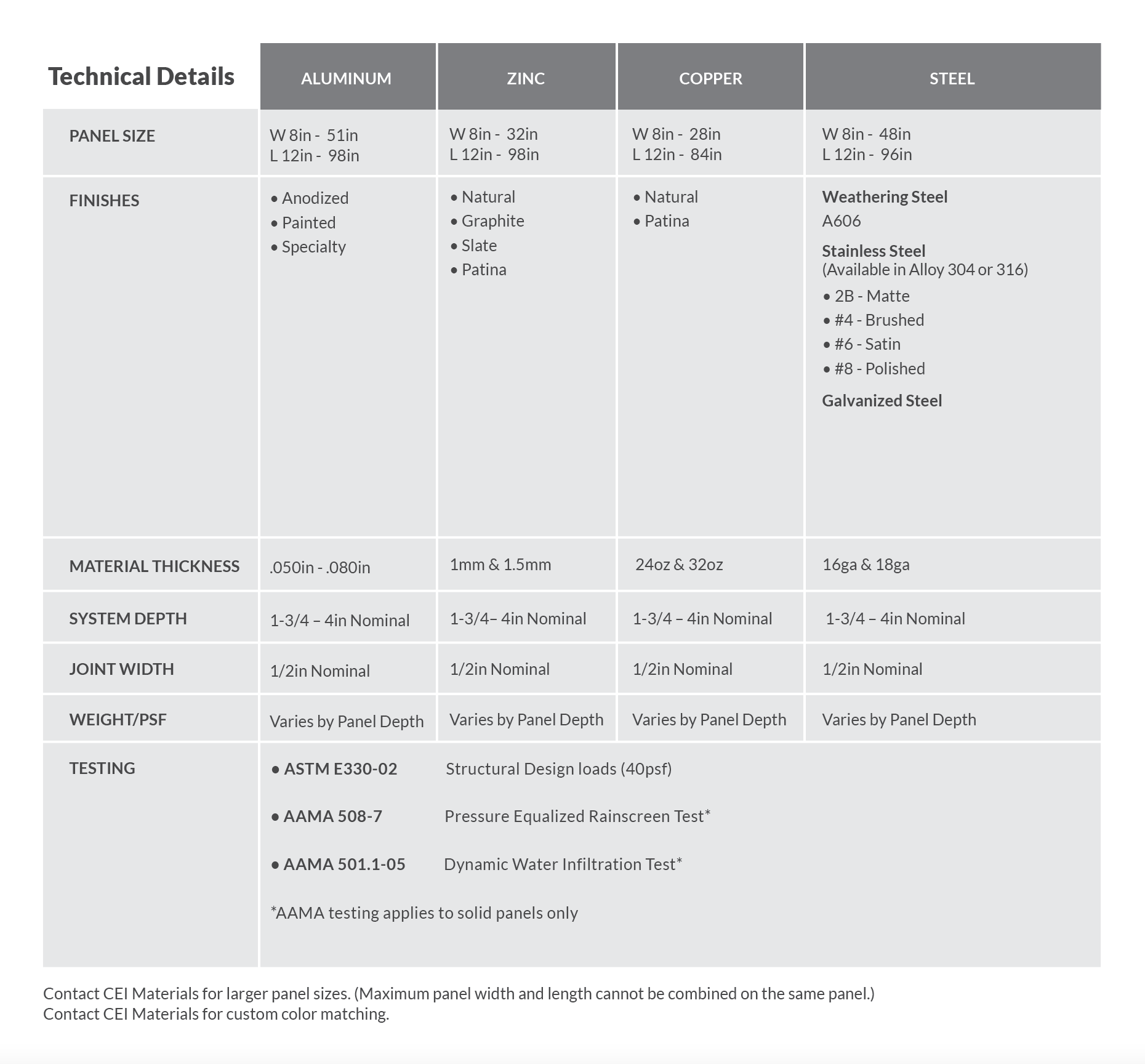

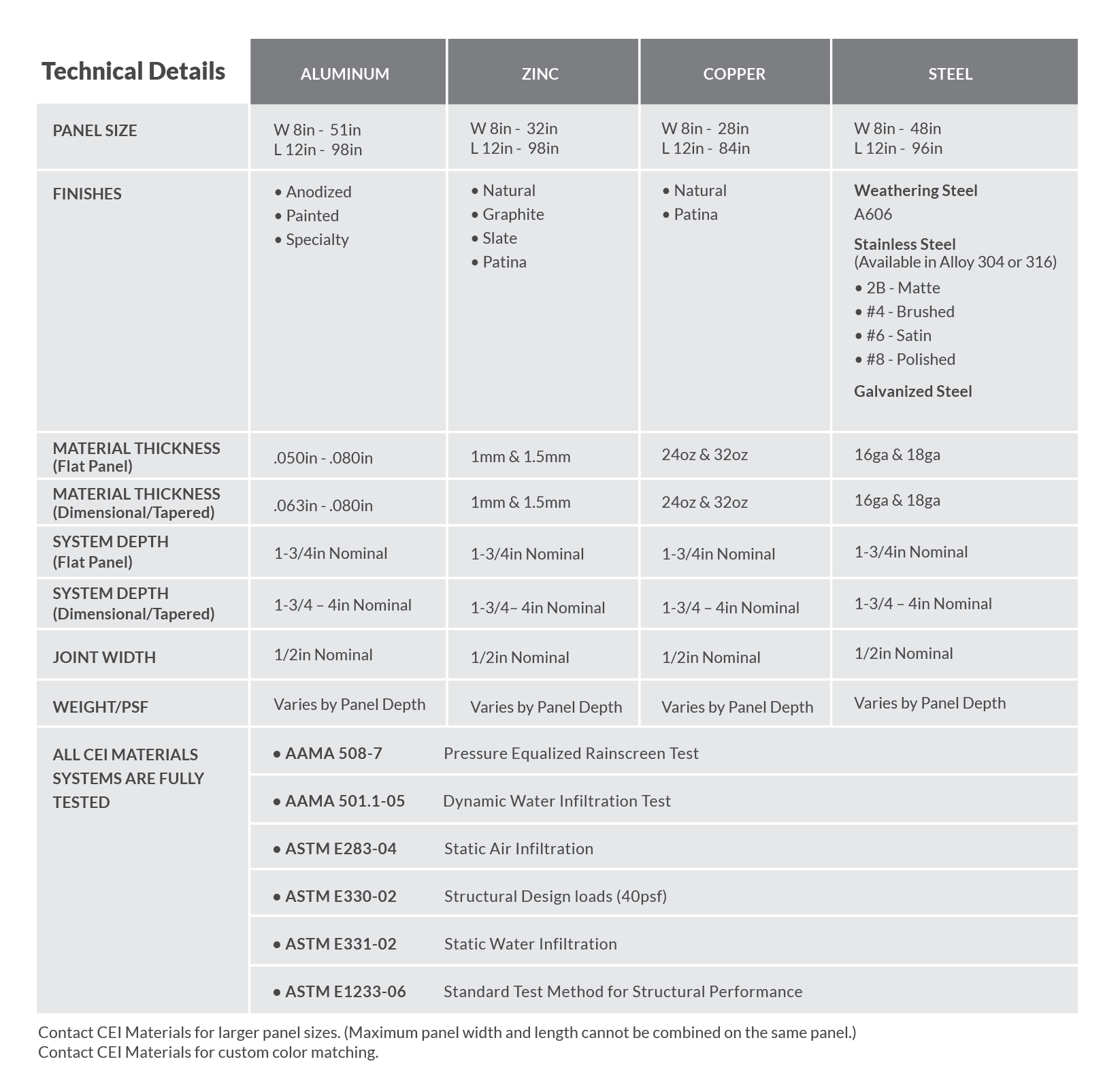

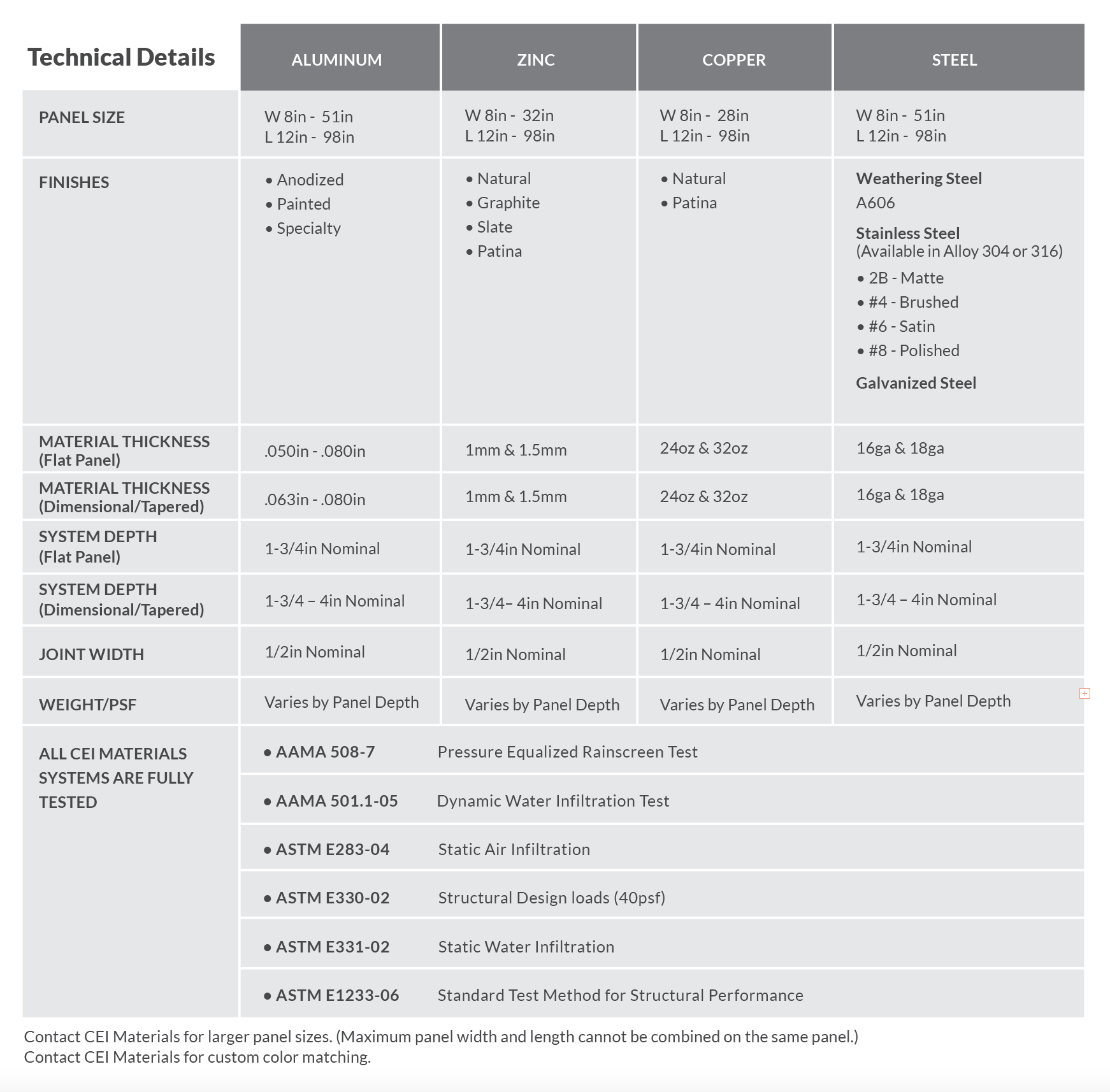

Testing / Tech Detail

Technical Details ALUMINUM ZINC COPPER STAINLESS STEEL

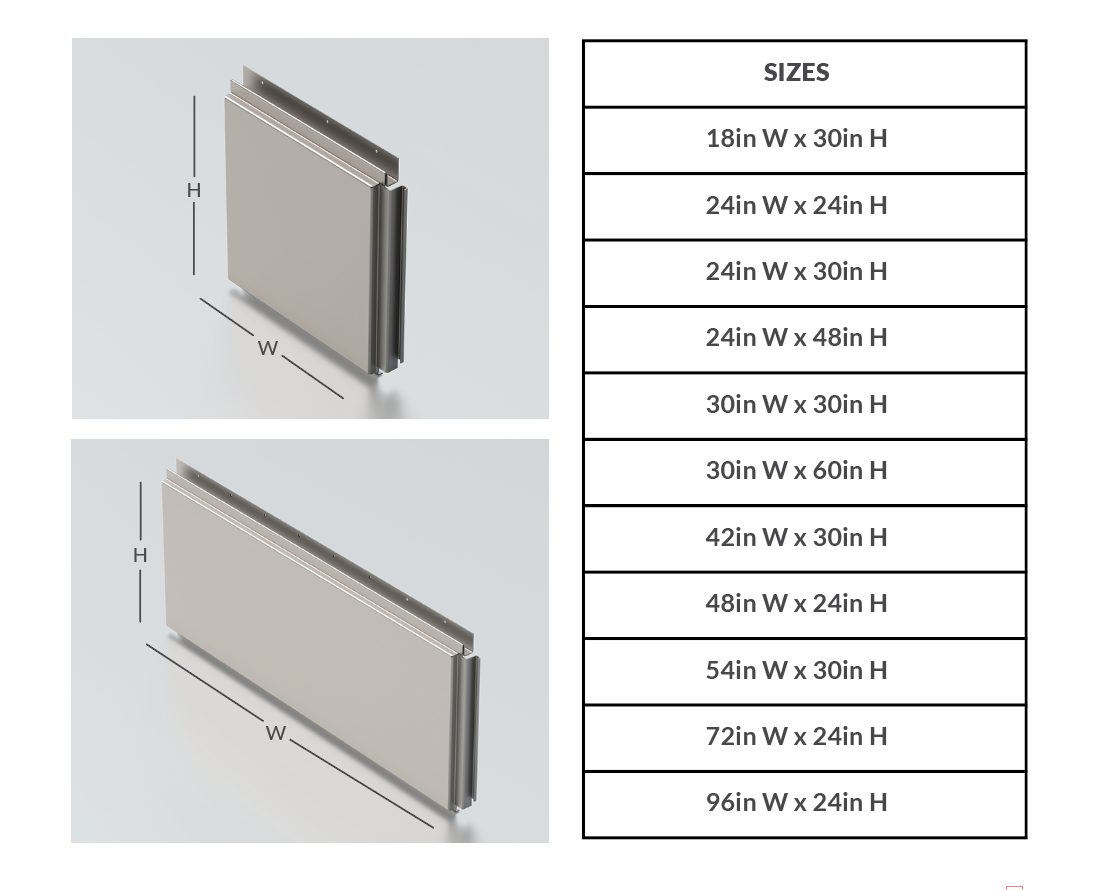

PANEL SIZE W 8" - 51"
L 12" - 98"		 W 8" - 32"
L 12" - 98"		 W 8" - 28"
L 12" - 84"		 W 8" - 48"
L 12" - 96"
FINISHES Anodized
  • Clear
  • Bronze
  • Champagne
  • Black
  • Copper
  • Bordeaux
Painted
  • 2 coat (Solids)
  • 3 coat (Metallics)*

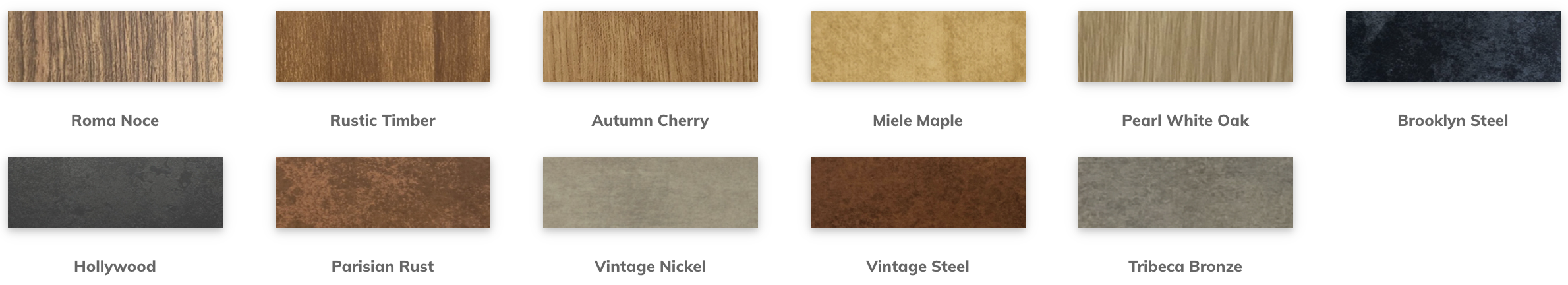

Specialty
  • Terra Cotta
  • Spattercoat
  • Natural
  • Graphite
  • Slate
  • Patina
  • Natural
  • Patina
  • 2D - Cold-Rolled Dull
  • 4 - General Purpose
  • Polished
  • 6 - Dull, Satin
  • 8 - Mirror Finish
MATERIAL THICKNESS .050in - .080in 1mm & 1.5mm 24oz & 32oz 16ga & 18ga
SYSTEM DEPTH 1-3/4 -- 4" Nominal 1-3/4 -- 4" Nominal 1-3/4 -- 4" Nominal 1-3/4 -- 4" Nominal
REVEAL WIDTH 1/2" Nominal 1/2" Nominal 1/2" Nominal 1/2" Nominal
WEIGHT/PSF .8 - 1.2lbs/psf 1.6 - 2.2lbs/psf 1.5 - 2lbs/psf 2 - 2.5lbs/psf
ALL CEI MATERIALS SYSTEMS ARE FULLY TESTED AAMA 508-7 Pressure Equalized Rainscreen Test
AAMA 501.1-05 Dynamic Water Infiltration Test
ASTM E283-04 Static Air Infiltration
ASTM E330-02 Structural Design loads (40psf)
ASTM E331-02 Static Water Infiltration
ASTM E1233-06 Standard Test Method for Structural Performance
Contact CEI Materials for Larger Panel sizes. (Maximum Panel Width and Length cannot be combined on the same panel)
Contact CEI Materials for Custom Color Matching.

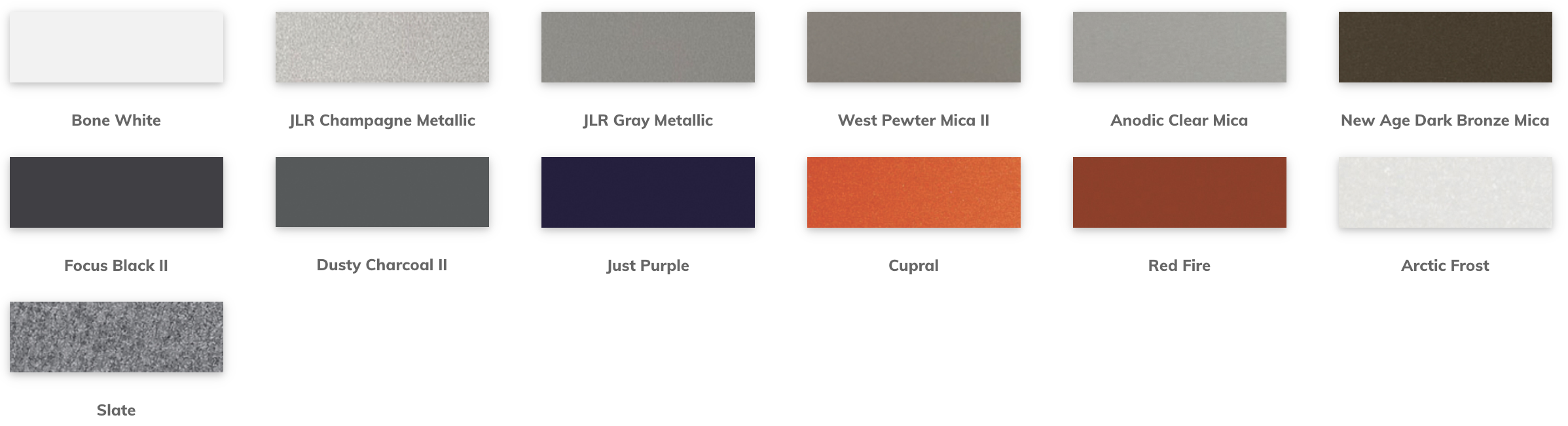

Color Offering

Stock

CLADLOK™ Panels - CEI Materials - swatch-bone-white

Bone White

CLADLOK™ Panels - CEI Materials - swatch-stone-white

Stone White

CLADLOK™ Panels - CEI Materials - swatch-city-scape

City Scape

CLADLOK™ Panels - CEI Materials - swatch-slate-gray

Slate Gray

CLADLOK™ Panels - CEI Materials - swatch-sandstone

Sandstone

CLADLOK™ Panels - CEI Materials - swatch-sierra-tan

Sierra Tan

CLADLOK™ Panels - CEI Materials - swatch-musket-gray

Musket Gray

CLADLOK™ Panels - CEI Materials - swatch-colonial-red

Colonial Red

CLADLOK™ Panels - CEI Materials - swatch-cardinal-red

Cardinal Red

CLADLOK™ Panels - CEI Materials - swatch-terra-cotta

Terra Cotta

CLADLOK™ Panels - CEI Materials - swatch-medium-bronze

Medium Bronze

CLADLOK™ Panels - CEI Materials - swatch-dark-bronze

Dark Bronze

CLADLOK™ Panels - CEI Materials - swatch-matte-black

Matte Black

CLADLOK™ Panels - CEI Materials - swatch-interstate-blue

Interstate Blue

CLADLOK™ Panels - CEI Materials - swatch-charcoal

Charcoal

CLADLOK™ Panels - CEI Materials - swatch-hunter-green

Hunter Green






Premium

CLADLOK™ Panels - CEI Materials - swatch-anodic-clear

Anodic Clear

CLADLOK™ Panels - CEI Materials - swatch-silversmith

Silversmith

CLADLOK™ Panels - CEI Materials - swatch-silver

Silver

CLADLOK™ Panels - CEI Materials - swatch-champagne

Champagne

CLADLOK™ Panels - CEI Materials - swatch-zinc

Zinc

CLADLOK™ Panels - CEI Materials - swatch-weathered-zinc

Weathered Zinc






Natural Metals

CLADLOK™ Panels - CEI Materials - swatch-natural-copper

Natural Copper

CLADLOK™ Panels - CEI Materials - swatch-patina-copper

Patina Copper

CLADLOK™ Panels - CEI Materials - swatch-polished-stainless

Polished Stainless

CLADLOK™ Panels - CEI Materials - swatch-dull-stainless

Dull Stainless

CLADLOK™ Panels - CEI Materials - swatch-mirror-finish-stainless

Mirror Finish Stainless

CLADLOK™ Panels - CEI Materials - swatch-natural-zine

Natural Zinc

CLADLOK™ Panels - CEI Materials - swatch-patina-zinc

Patina Zinc

CLADLOK™ Panels - CEI Materials - swatch-graphite-zinc

Graphite Zinc

CLADLOK™ Panels - CEI Materials - swatch-slate-zinc

Slate Zinc

Download Anodized Finishes Color Charts Download Paint Finishes Color Charts

Extrusions

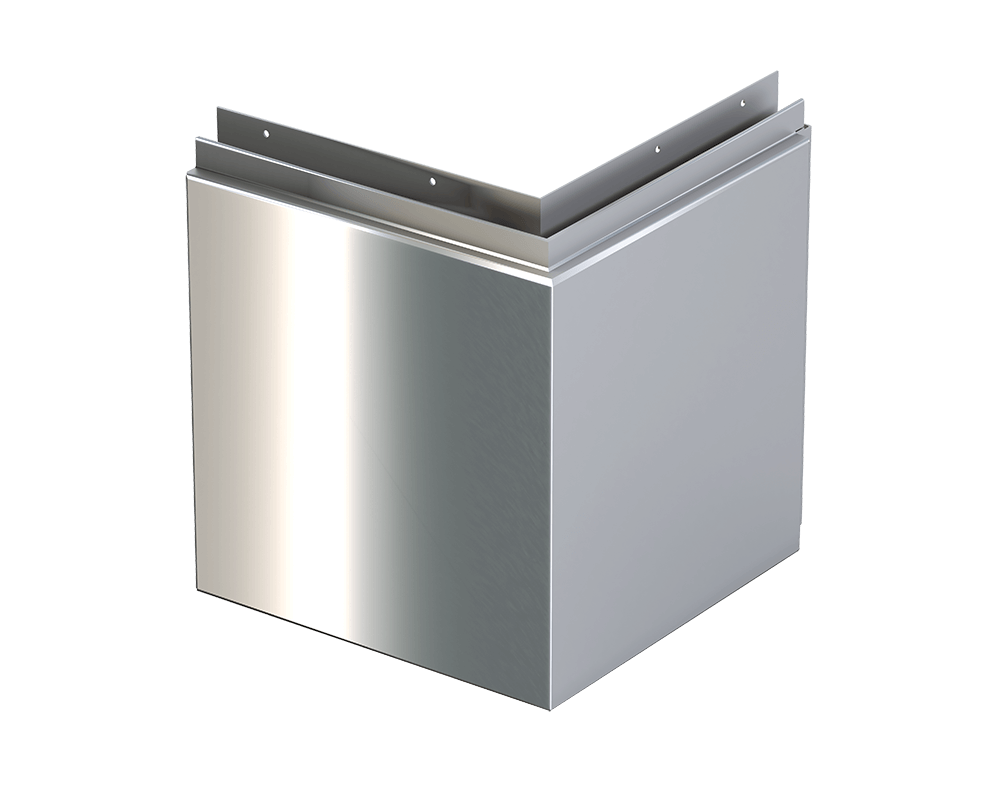

Formed Corner

Formed Corner

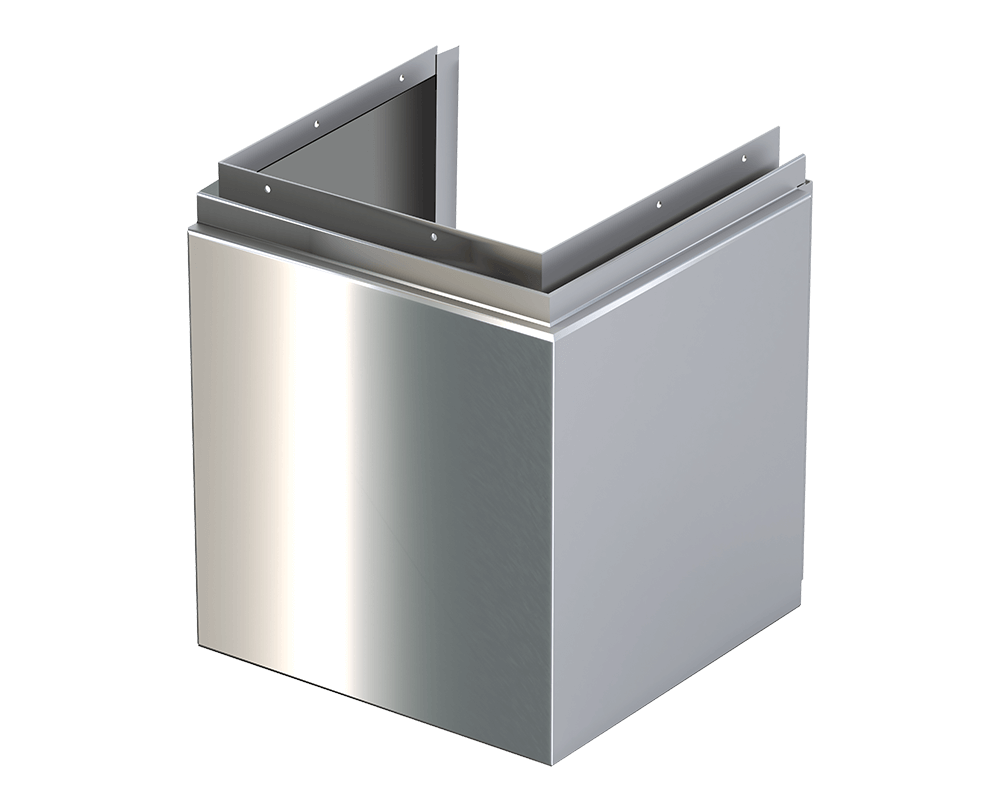

Column Cover

Column Cover

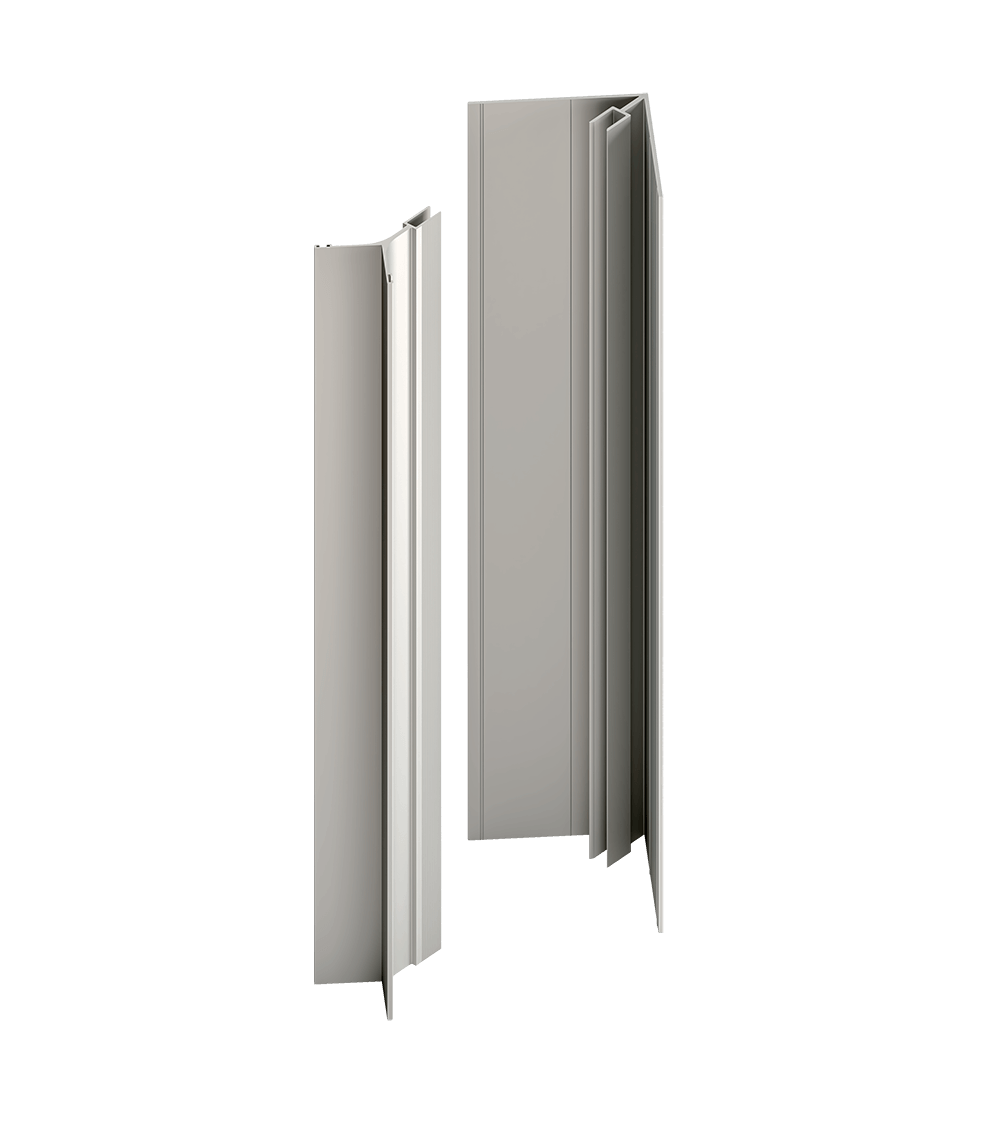

2 - Piece Inside Corner Extrusion

2 - Piece Inside Corner Extrusion

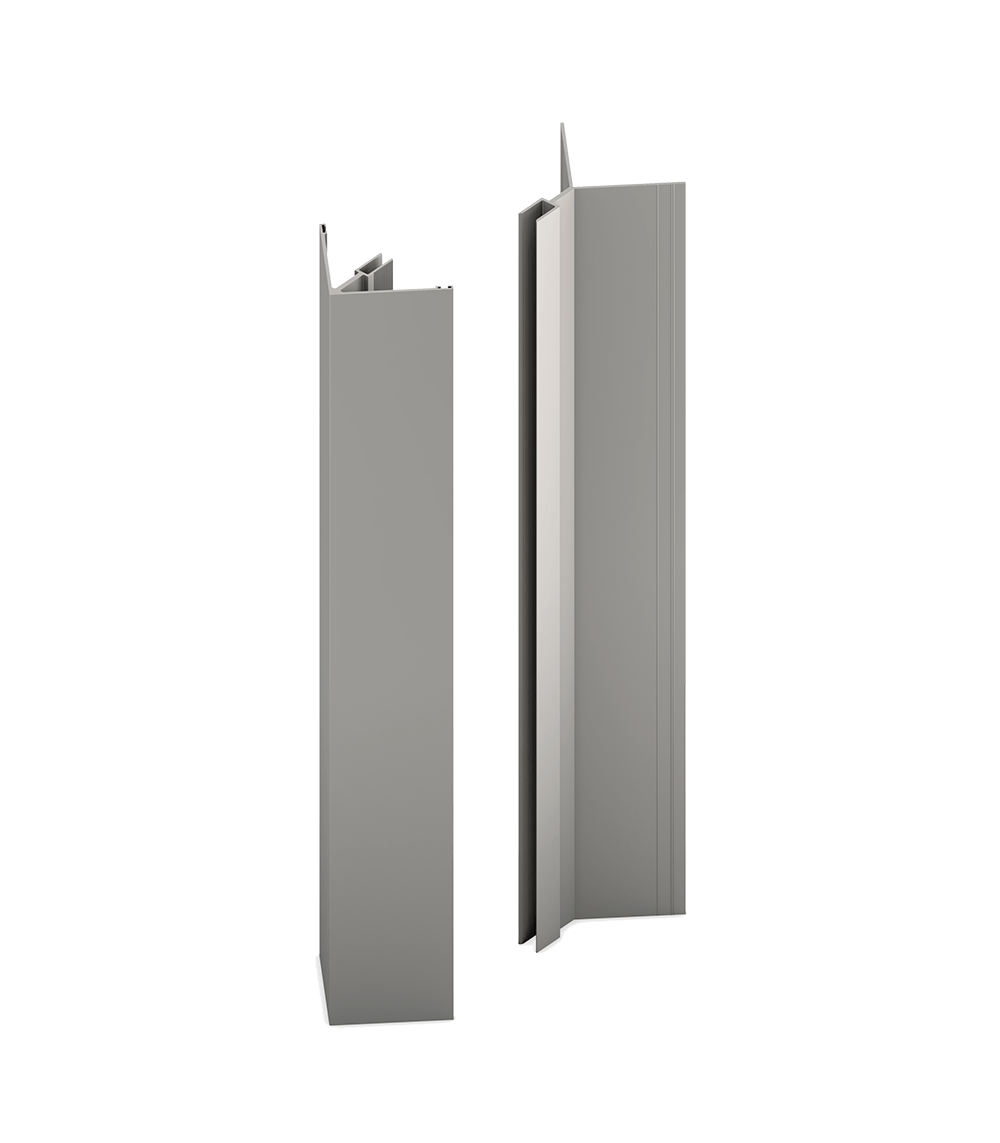

2 - Piece Outside Corner Extrusion

2 - Piece Outside Corner Extrusion

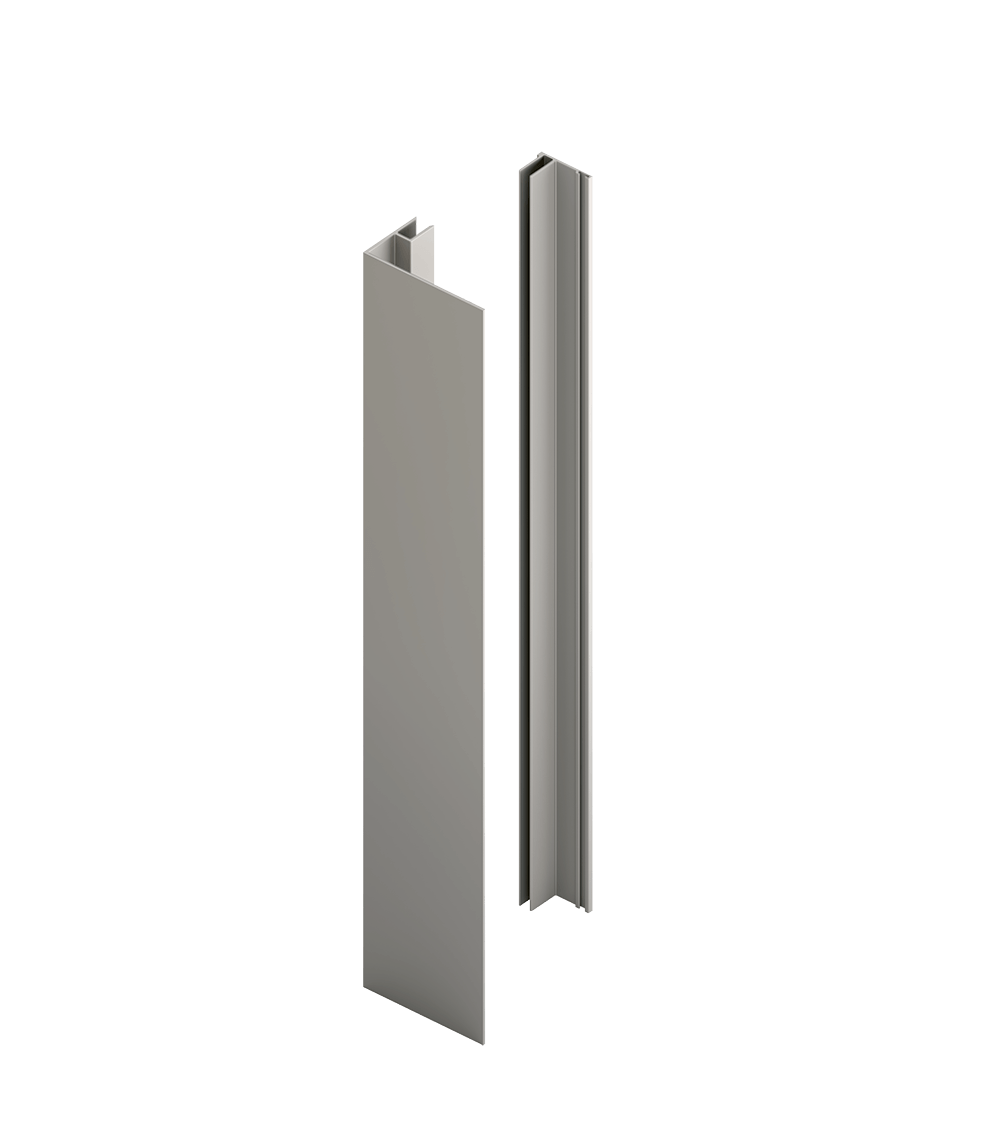

2-Piece Termination Extrusion

2-Piece Termination Extrusion

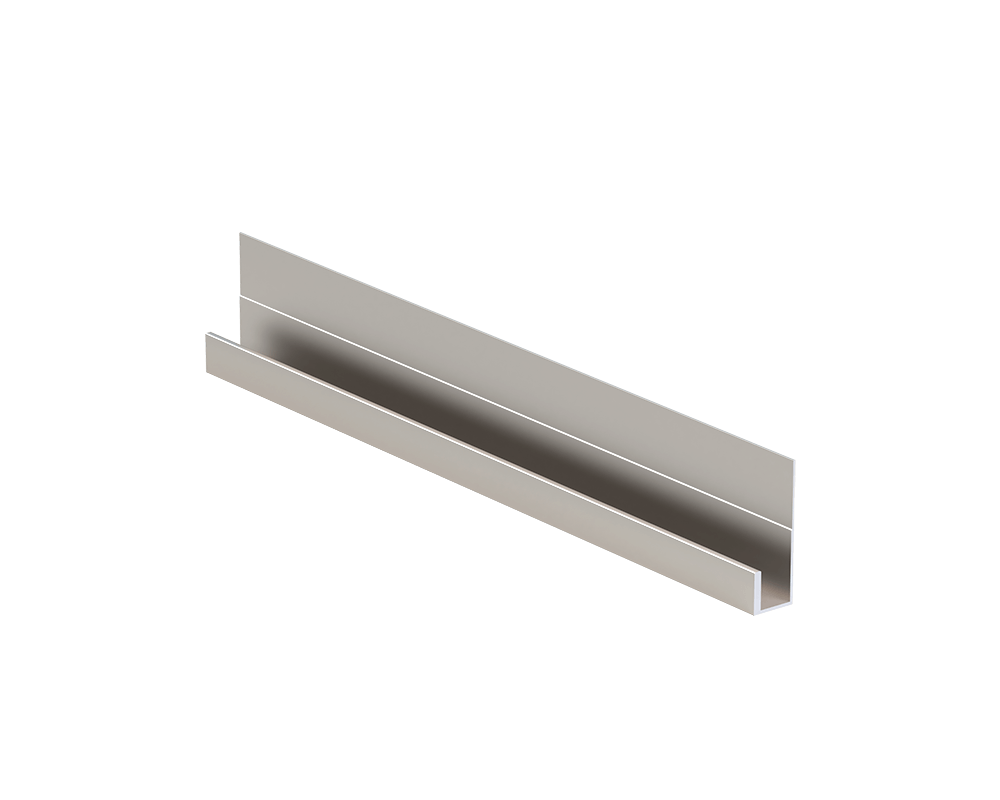

Starter J

Starter J

Wall Panel Options

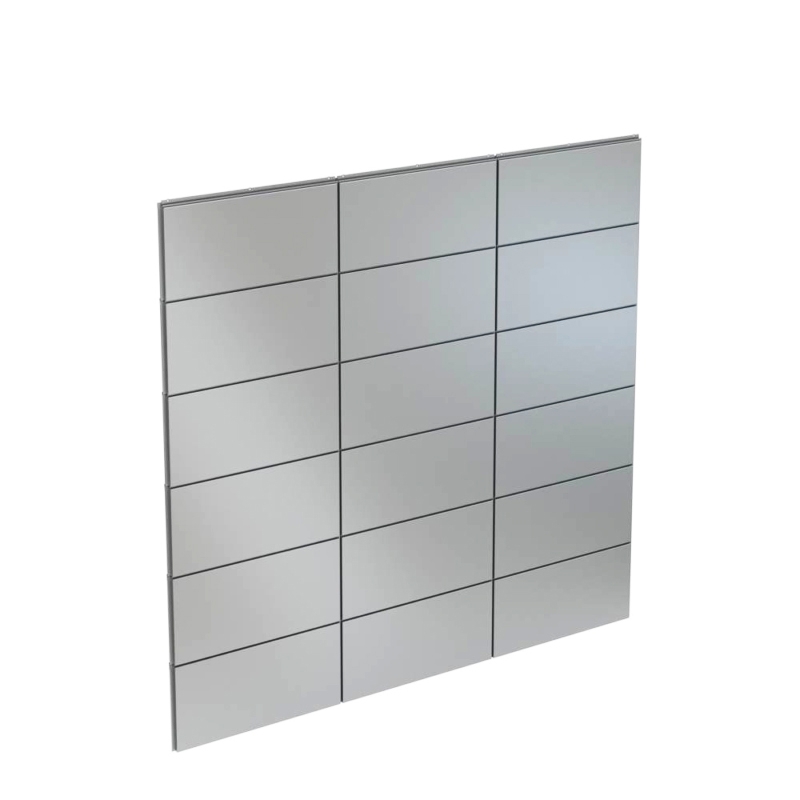

Horizontal Stacked

Horizontal Stacked

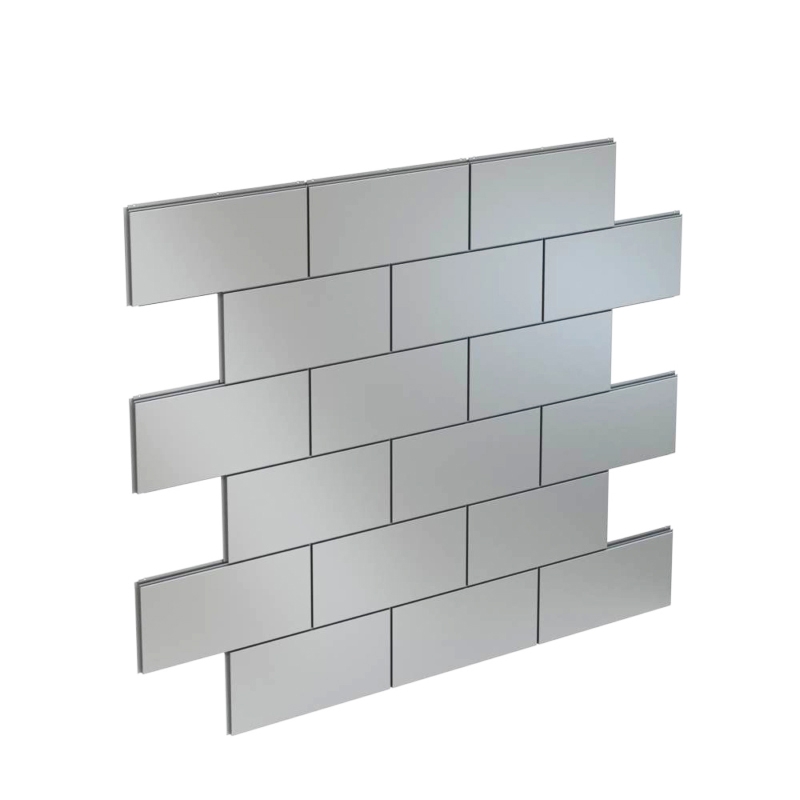

Half Horizontal Stagger

Half Horizontal Stagger

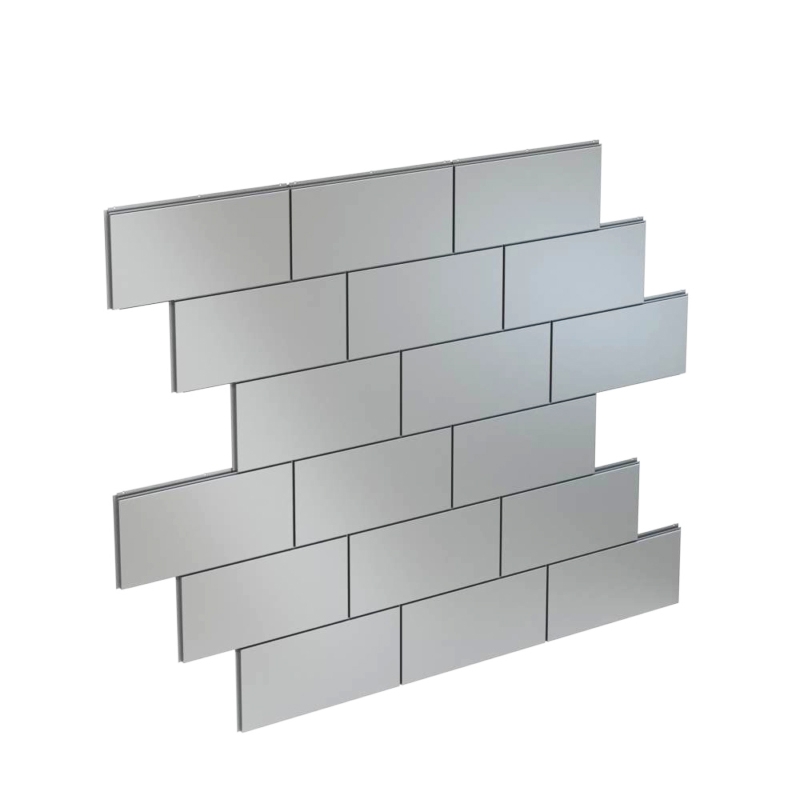

Quarter Horizontal Stagger

Quarter Horizontal Stagger

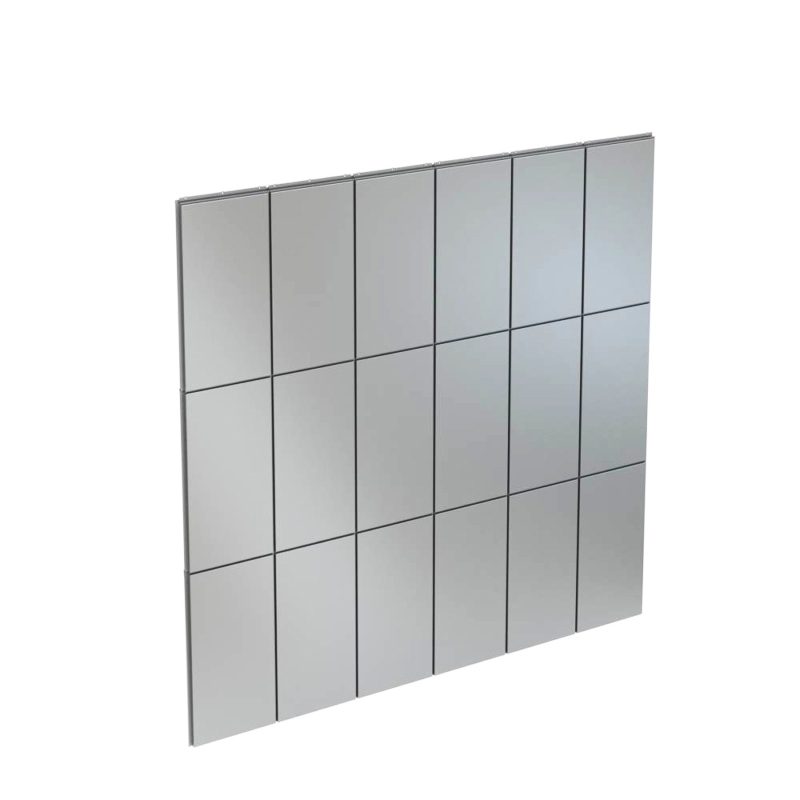

Vertical Stacked

Vertical Stacked

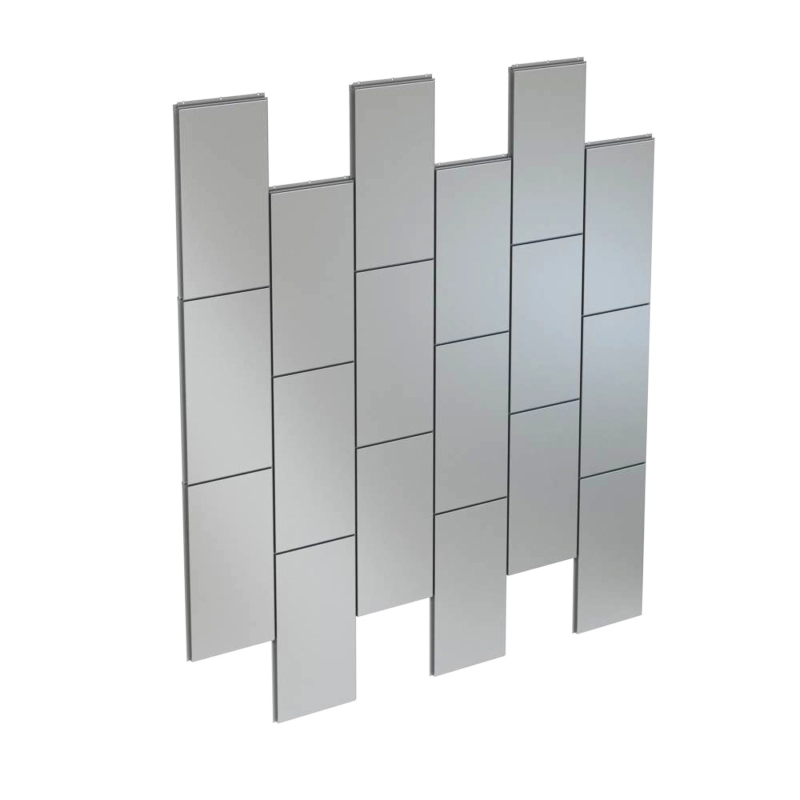

Half Vertical Stagger

Half Vertical Stagger

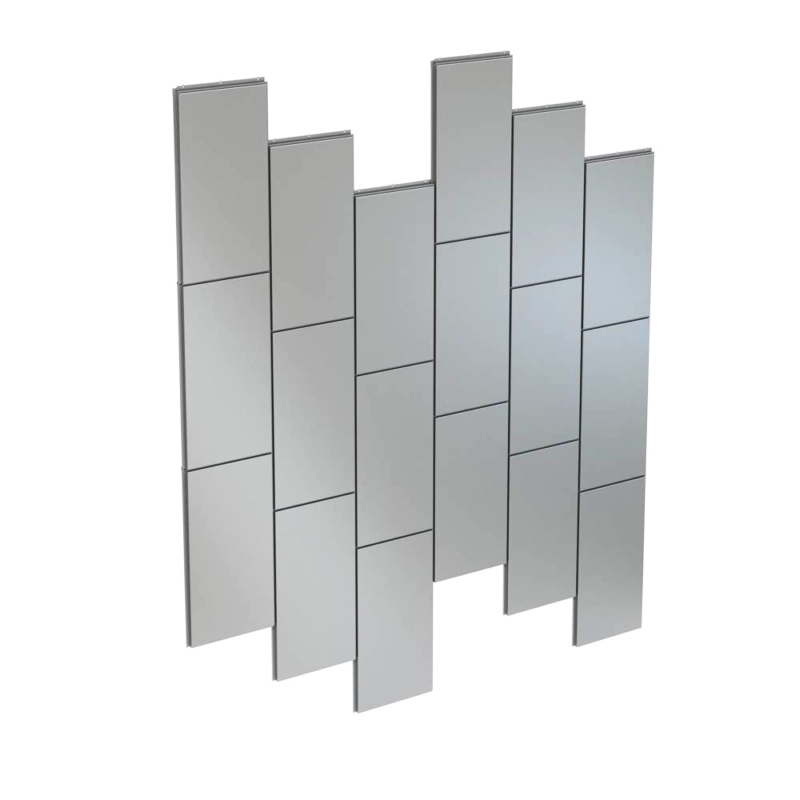

Quarter Vertical Stagger

Quarter Vertical Stagger

Projects Featuring CLADLOK™ Panels

View Projects by Collection:

or
or
or

FAQ

What is CLADLOK™?
CEI Materials' modular CLADLOK™ Panel System is a pressure equalized rainscreen system that is easily installed to a wide variety of substrates and subgirt systems. This cassette style plate panel system has all interlocking edges formed from 1 piece of metal and does not require any additional components other than the fasteners that attach it to the wall or subgirt.
What finishes does CLADLOK™ offer?
Painted Aluminum both solids and metallics, Anodized, Natural Metals including Zinc, copper and Stainless Steel. Also, specialty finishes like wood, stone and terra cotta.
How easy is it to install?
Only requires a starter track and then the CLADLOK™ panel system can be easily attached to the girt system from left to right.
What type of colors and warranties are available with CLADLOK™?
20 Year Finish Warranty on Painted Options. Other material warranties may depend on type of finish and sheet manufacturer.
What are the lead times?
Typically 4 weeks but maybe longer depending on size of project.
Are there any purchase minimums?
NO
Can we use a variety of CLADLOK™ sizes on the same wall?
Yes both vertical and horizontal panel cassettes can be mixed.
Can CLADLOK™ be used in a rainscreen system?
CLADLOK™ Panel System is a pressure equalized rainscreen system.
Is CLADLOK™ fully tested?

Yes.

  • AAMA 508-7: Pressure Equalized Rainscreen Test
  • AAMA 501.1-05: Dynamic Water Infiltration Test
  • ASTM E283-04: Static Air Infiltration
  • ASTM E330-02: Structural Design loads (40psf)
  • ASTM E331-02: Static Water Infiltration
  • ASTM E1233-06: Standard Test Method for Structural Performance
Is CLADLOK™ non-combustible?
All CLADLOK™ products are single skin metal which is non-combustible and 100% recyclable.
